1. The Post-Sales Support Challenge Maria Faces
Maria runs a busy online clothing store powered by WooCommerce. Every day, she receives dozens of customer queries about order statuses, shipping details, and returns. Because many customers don’t provide correct order or email details, Maria spends a lot of time cross-checking information manually, slowing down responses and sometimes making mistakes. Customers often wait hours or even days for answers about shipments or order details, leading to frustration and lost trust.
Maria also worries about protecting customer data. Sharing order details without proper verification risks breaching privacy policies. She wants to automate her post-sales support efficiently, ensuring fast, accurate replies while safeguarding sensitive information. That’s where this powerful n8n workflow comes in.
2. What This WooCommerce AI Chatbot Automation Does
This unique n8n workflow combines AI tools and WooCommerce APIs to automate post-sales support effectively. Whenever a customer sends a message, the following happens:
- Identity Verification: The chatbot asks customers for their order number and the email address linked to the order. It strictly verifies the email before providing any order information, preventing data leaks.
- Fetch Order Details: Once verified, it queries the WooCommerce database for real-time order status and shipment info.
- Retrieve Tracking Numbers: It pulls detailed tracking codes and carrier URLs from the WooCommerce tracking plugin to keep customers updated.
- Answer FAQs: Using a vector similarity search on company policies stored in a Qdrant vector database, the chatbot quickly responds to common questions about shipping, returns, and terms.
- Human Escalation: Complex or unresolved queries are forwarded to a human agent via Telegram for manual handling.
- Memory and Context: It uses “Simple Memory” AI node to keep conversational context to maintain a natural support flow.
By automating these tasks, Maria can cut down customer response time from hours to seconds, reduce manual errors, and ensure compliance with privacy standards.
3. Prerequisites ⚙️
- n8n account (cloud or self-hosted)
- WooCommerce API access with admin credentials
- OpenAI account for AI chat and embeddings
- Qdrant vector database service with API credentials
- Google Drive account for storing post-sales documents
- Telegram bot and chat ID configured for human assistance escalation

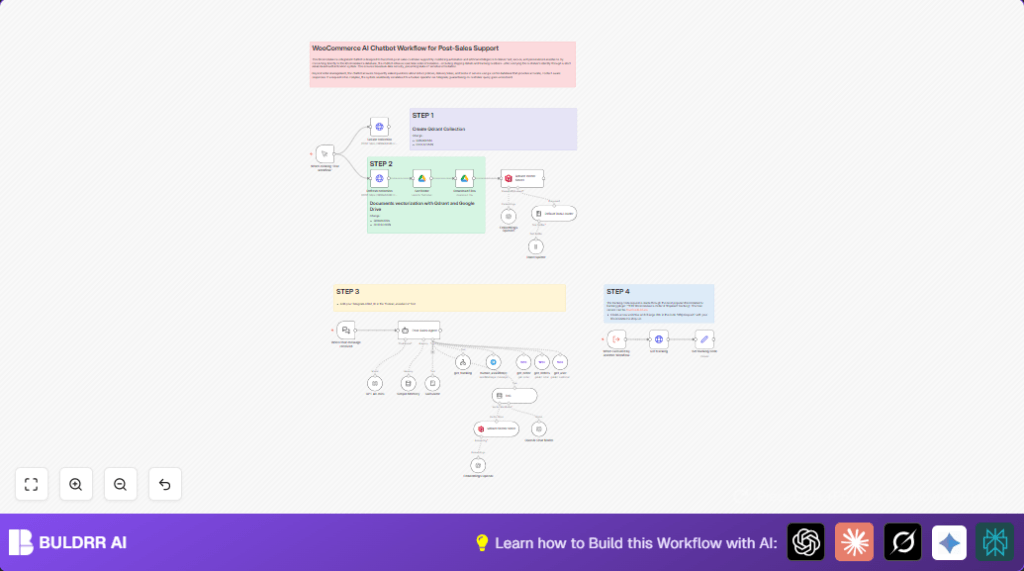

4. Step-by-Step Guide to Build Your WooCommerce AI Chatbot
Step 1: Setup the Chat Message Trigger Node
Go to n8n and add the When chat message received node (type: @n8n/n8n-nodes-langchain.chatTrigger).
Configure it to be publicly accessible as a webhook, so customer messages to the chatbot trigger this workflow. Use response mode as responseNode to send answers back immediately.
You should see a webhook URL generated for incoming chat messages.
Common mistake: Forgetting to set public mode will block external messages.
Step 2: Integrate WooCommerce Order Lookup
Add the get_order node (n8n-nodes-base.wooCommerceTool) to fetch specific order details.
In the parameters, set the order ID to the order number extracted from customer input. Use AI override expressions as in the workflow to request order and email for verification.
Ensure WooCommerce API credentials are set (use your store admin keys).
This node verifies the order exists before proceeding.
Common mistake: Not providing full order number or linking wrong API credentials.
Step 3: Verify Customer Email
Add the get_user node (n8n-nodes-base.wooCommerceTool) to fetch the customer profile by email.
The chatbot compares the provided email with the order’s recorded email. If they don’t match, a message halts the process to protect privacy.
Expected result: If the email is valid, the workflow continues; if not, a polite rejection message is sent.
Step 4: Retrieve Order Tracking Details
Add the get_tracking tool node (@n8n/n8n-nodes-langchain.toolWorkflow) which calls a separate workflow to get tracking info using the order number.
The secondary workflow uses the Get tracking HTTP Request node to call the WooCommerce tracking plugin API (like “YITH WooCommerce Order & Shipment Tracking”).
Extract tracking code, carrier URL, and pick-up date into separate fields with the Set tracking code node (n8n-nodes-base.set).
This data is then passed back to the chatbot for clear customer updates.
Step 5: Answer FAQs Using Vector Store
Set up a Qdrant vector store collection for company policies and shipping info.
Use the Default Data Loader and Google Drive nodes to retrieve documents, download and split text chunks with Token Splitter.
Use Embeddings OpenAI nodes to convert text to embeddings, then insert into the Qdrant Vector Store for vector similarity search during chatbot interactions.
The chatbot uses the ToS tool vector store node to pull relevant answers to customer FAQs.
Step 6: Enable Human Assistance Escalation
If the chatbot cannot confidently resolve a query, it sends the conversation details to a human via Telegram.
Add the human_assistence node (n8n-nodes-base.telegramTool) configured with your bot’s chat ID.
The Post-Sales Agent AI agent node triggers this escalation when necessary.
Step 7: Maintain Conversational Memory
Use the Simple Memory node (@n8n/n8n-nodes-langchain.memoryBufferWindow) to retain recent conversational context so responses are coherent.
This helps provide seamless, natural customer support.
Step 8: Testing and Final Adjustments
Trigger the workflow by sending a test message to the webhook URL.
Confirm retrieval of order info, email verification, tracking data, and FAQ responses.
Check that human escalation triggers if queries are ambiguous.
Common mistake: Missing API keys or incorrect Telegram chat ID can block escalation.
5. Customizations ✏️
- Change verification criteria: Adjust the email verification logic inside the get_order or AI agent node to require phone number or additional ID.
- Add support for multiple languages: Enhance the AI prompt node to detect language and respond accordingly.
- Expand FAQ documents: Add more policy docs into Google Drive and refresh the vector store collection to keep the chatbot knowledge current.
- Use advanced AI models: Swap the GPT 4o-mini node with more powerful OpenAI models for richer responses if you have available API quota.
6. Troubleshooting 🔧
Problem: “Email does not match order message never triggers”
Cause: Incorrect field mapping or AI prompt not parsing email input correctly.
Solution: Review AI prompt in the get_order node; test input with clear order number and email. Verify node output data format.
Problem: “Tracking code retrieval fails”
Cause: WooCommerce tracking plugin endpoint URL or authentication settings are incorrect.
Solution: Confirm the HTTP request URL is correct and API credentials are valid. Check WooCommerce plugin installation.
Problem: “Telegram escalation messages not sent”
Cause: Invalid Telegram CHAT_ID or expired token.
Solution: Verify Telegram bot token and chat ID in human_assistence node credentials. Re-authorize if needed.
7. Pre-Production Checklist ✅
- Ensure WooCommerce API credentials have read permission for orders and customers.
- Verify OpenAI API key is active and set in n8n credentials.
- Test Qdrant vector store connection and collection exists before workflow activation.
- Validate Telegram bot token and chat ID for human escalation.
- Run test webhook calls with valid order and email data to verify full process.
- Back up your workflow JSON before production deployment.
8. Deployment Guide
Activate the workflow in n8n and ensure the When chat message received webhook is live and accessible publicly.
Monitor initial runs using n8n’s execution history to confirm no errors and proper responses.
Set up alerts for Telegram escalation messages to ensure any failed queries are handled promptly by humans.
This workflow scales with your shop volume as WooCommerce API can handle multiple requests efficiently.
10. Conclusion
By implementing this n8n WooCommerce AI Chatbot workflow, Maria has automated the toughest part of her post-sales support: verifying customer identity and providing timely, accurate order and shipping information. She cut down response times drastically, improved customer satisfaction, and protected sensitive data through strict verification.
Next steps could include expanding multilingual support, integrating with more shipping providers, or enhancing AI understanding with custom training. This solution empowers any WooCommerce store to deliver professional, friendly, and secure post-sales support with minimal manual effort.
Ready to transform your WooCommerce support? Let’s build and scale this AI chatbot today!
