How to Build an AI-Powered Chat Agent for Supabase with n8n

Opening Problem Statement ⚙️

Meet Sarah, a data analyst at a rapidly growing e-commerce startup. Every day, Sarah spends hours writing and debugging complex SQL queries to extract insights from the company’s Supabase-hosted PostgreSQL database. Despite her expertise, the process is slow and repetitive, especially when answering ad hoc questions from team members. What if there was a way for Sarah to simply chat with her database in natural language and get instant, accurate answers without writing any SQL herself? This is where the power of n8n combined with AI and Supabase comes into play.

Sarah’s current workflow wastes at least 3 hours daily on manual query crafting and data verification. Mistakes in queries or misunderstood requirements sometimes cost the company delayed reports and missed business opportunities. With this workflow, Sarah can significantly cut down querying time, reduce errors, and empower non-technical stakeholders to access reliable data independently.

What This Automation Does ✅

This unique n8n workflow enables an AI-powered chat agent that interacts with a Supabase PostgreSQL database. Here’s what happens when the workflow runs:

• ✅ Listens for user chat messages through the LangChain chat trigger node.
• ✅ Sends user input to OpenAI’s chat model to understand context and generate SQL queries dynamically.
• ✅ Retrieves database schema information with PostgresTool nodes to understand table structures and relationships.
• ✅ Executes customized SQL queries on Supabase PostgreSQL using the AI-generated SQL.
• ✅ Returns user-friendly query results conversationally through the AI agent.
• ✅ Supports JSON data extraction and complex query responses for rich data interactions.

By automating conversational access to your database, the workflow saves hours of manual querying and bridges the technical gap for end users.

Prerequisites ⚙️

• n8n account with workflow automation capabilities.
• Supabase account hosting your PostgreSQL database with valid username and password credentials.
• OpenAI account with API key for chat model access.
• PostgreSQL credentials properly configured in n8n (host, database name, username, password).
• Basic familiarity with SQL recommended to customize queries (optional).

Step-by-Step Guide ✏️

1. Set Up Your Environment and Accounts

First, create accounts on n8n, Supabase, and OpenAI if you haven’t already. In Supabase, create or identify the PostgreSQL database you want your AI agent to interact with. Note down the database’s host, username, password, and name.

2. Configure PostgreSQL Credentials in n8n

Open n8n and add new Postgres credentials with all required fields: host, database, username, and password. This allows the workflow to connect securely to your Supabase database.

3. Add the “When Chat Message Received” LangChain Trigger Node

Navigate to Nodes → Click Add Node → Search for “chatTrigger” → Select LangChain Chat Trigger. This node will listen for incoming chat messages from users, acting as the workflow’s entry point.

4. Set Up the “AI Agent” Node Using LangChain Agent

Add the LangChain Agent node and connect it to the trigger node. In this node, configure the system message instructing the AI: “You are DB assistant. You need to run queries in DB aligned with user requests. Run custom SQL queries to aggregate data and respond to the user.”

The AI Agent node uses OpenAI functions and triggers SQL generation and query execution based on input messages.

5. Configure PostgresTool Nodes to Retrieve Database Schema

Add a PostgresTool node named “DB Schema” with the following SQL query to list all tables:

SELECT table_schema, table_name
FROM information_schema.tables
WHERE table_type = 'BASE TABLE' AND table_schema = 'public';

This informs the agent about existing tables it can query.

6. Add PostgresTool Node to Get Table Definitions

Create another PostgresTool node “Get table definition” which dynamically fetches columns and constraints for a table. Use this SQL:

SELECT
 c.column_name,
 c.data_type,
 c.is_nullable,
 c.column_default,
 tc.constraint_type,
 ccu.table_name AS referenced_table,
 ccu.column_name AS referenced_column
FROM
 information_schema.columns c
LEFT JOIN
 information_schema.key_column_usage kcu
 ON c.table_name = kcu.table_name
 AND c.column_name = kcu.column_name
LEFT JOIN
 information_schema.table_constraints tc
 ON kcu.constraint_name = tc.constraint_name
 AND tc.constraint_type = 'FOREIGN KEY'
LEFT JOIN
 information_schema.constraint_column_usage ccu
 ON tc.constraint_name = ccu.constraint_name
WHERE
 c.table_name = '{{ $fromAI("table_name") }}' -- Your table name
 AND c.table_schema = 'public' -- Ensure it's in the right schema
ORDER BY
 c.ordinal_position;

This lets the AI understand column types and foreign keys for intelligent query generation.

7. Set Up PostgresTool Node to Run Custom SQL Queries

Add the “Run SQL Query” PostgresTool node, which executes the AI-generated SQL from the “AI Agent” node using this template:

{{ $fromAI("query","SQL query for PostgreSQL DB in Supabase") }}

This dynamically runs the queries based on user chat inputs.

8. Integrate OpenAI Chat Model Node

Add the OpenAI Chat Model node connected to the AI Agent for natural language processing. Configure it with your OpenAI API credentials.

9. Connect All Nodes Sequentially

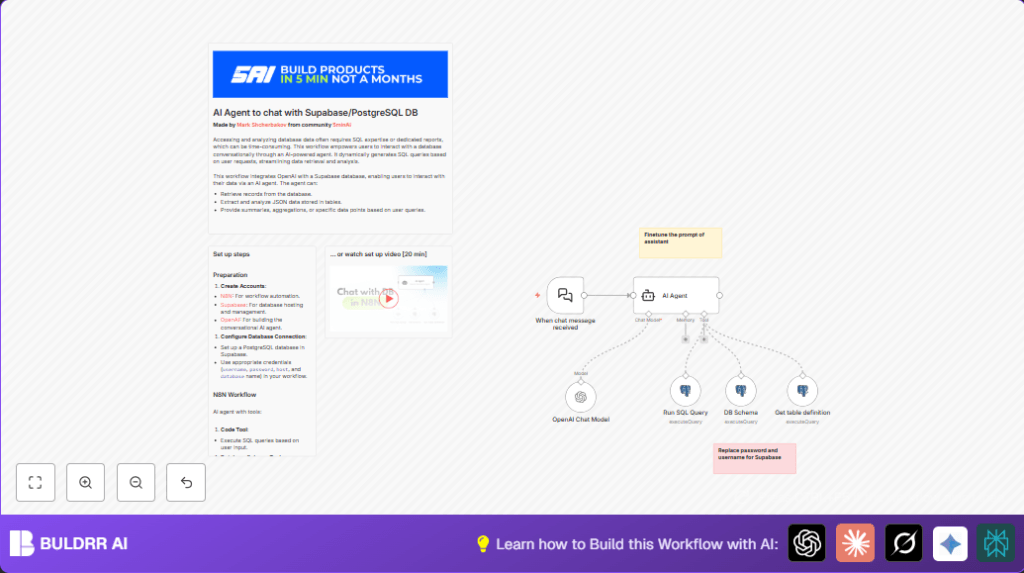

Connect the chat trigger → AI Agent → OpenAI Chat Model → PostgresTool nodes (DB Schema, Get table definition, Run SQL Query) so the AI has full conversational and data access.

10. Test Your Workflow

Trigger the workflow by sending a chat message such as “Show me the sales records from last month.” The AI should generate and run a suitable SQL query on your Supabase DB and return results conversationally.

Customizations ✏️

1. Modify System Prompt for AI Agent

In the AI Agent node, change the systemMessage prompt to better suit your business language or add instructions to handle specific tables differently.

2. Adjust SQL Queries for Specific Data Needs

Customize the SQL inside the “Run SQL Query” node to fine-tune how JSON extraction or aggregations work. For example, use PostgreSQL JSON operators to better analyze complex data types.

3. Expand Database Schema Scope

Modify the “DB Schema” node’s SQL to include more schemas than just ‘public’ if your database uses multiple schemas.

4. Add Additional Response Formatting

Insert a Code node post-query execution to reformat raw database output into a structured summary or JSON before returning it through the AI agent.

Troubleshooting 🔧

Problem: “Could not connect to PostgreSQL database”

Cause: Incorrect credentials (host, username, password) or network issues.

Solution: In n8n credentials settings, double-check all PostgreSQL connection fields and test network access to Supabase.

Problem: “OpenAI API quota exceeded or invalid API key”

Cause: Your OpenAI API key is invalid or you have run out of credits.

Solution: Verify your API key in n8n credentials and monitor usage at OpenAI dashboard. Renew quotas as needed.

Problem: “SQL syntax error in generated query”

Cause: AI generated invalid SQL due to ambiguous user input or unsupported SQL syntax.

Solution: Refine user prompts in the AI Agent system message. Add constraints or examples to guide query generation.

Problem: “Chat messages not triggering workflow”

Cause: Incorrect webhook configuration or disconnected nodes.

Solution: Verify webhook URL matches in “When chat message received” node and ensure correct node connections.

Pre-Production Checklist ✅

• Validate PostgreSQL credential data and connectivity.
• Test chat trigger webhooks with sample messages.
• Confirm AI agent prompt conveys correct context and instructions.
• Run test queries manually to ensure database accessibility.
• Backup your database or snapshot before deploying widely.

Deployment Guide

Activate your workflow in n8n by toggling it on. Use the webhook URL provided by the “When chat message received” node to integrate with your chat frontend or testing interface. Monitor execution logs in n8n for errors or performance metrics. Consider enabling detailed logging for troubleshooting during initial deployment.

FAQs

Can I use a different database instead of Supabase?

Yes. As long as your database supports PostgreSQL-compatible queries and you update connection credentials, this workflow can work with other PostgreSQL hosts.

Does this workflow consume a lot of OpenAI API credits?

Usage depends on query complexity and message volume. Optimize prompts and cache results where possible to reduce calls.

Is my database secure when accessed this way?

Your credentials are securely stored in n8n. Ensure your Supabase policies and network settings restrict unauthorized access.

Can non-technical users use this chat interface effectively?

Yes, that’s the key advantage. Users just ask questions in natural language, and the AI handles SQL generation and response formatting behind the scenes.

Conclusion ✅

By following this guide, you’ve created a powerful, AI-driven chat agent that connects directly to your Supabase PostgreSQL database using n8n. You’ve empowered yourself and your team to access and analyze data conversationally, saving hours each week and reducing error-prone manual querying.

Next, consider expanding this automation by adding richer data visualizations, integrating other data sources like APIs, or enabling multi-user chat support for wider team access.

Keep exploring and automating your data workflows—you’re now equipped with a sophisticated AI assistant tailored to your database!
