Automate PDF Data Extraction into Airtable with n8n and AI

1. Opening Problem Statement

Meet Sarah, a project manager at a fast-growing consultancy firm. Every week, Sarah receives dozens of client documents in PDF format containing essential details needed for project tracking. Manually extracting these details and updating her Airtable database takes hours, often resulting in mistakes and delays. This wasted time compromises project deadlines and frustrates stakeholders.

Sarah’s challenge is specific: she wants an automated, reliable way to parse relevant information from incoming PDFs and populate corresponding fields in her Airtable base. Without such automation, she spends over 8 hours weekly on repetitive data entry with frequent errors.

2. What This Automation Does

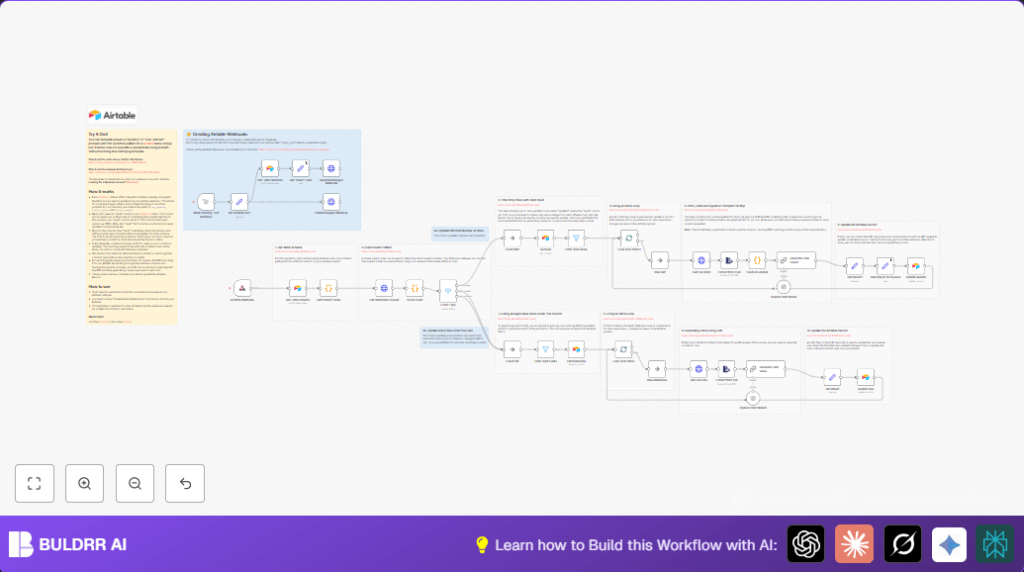

This n8n workflow automates Sarah’s exact problem, orchestrating AI-powered data extraction from PDFs and updating Airtable dynamically when either rows or fields change. When triggered, it:

• ✅ Listens for changes in Airtable rows or fields through webhooks
• ✅ Fetches the updated PDF file from Airtable
• ✅ Extracts text from PDF using n8n’s ExtractFromFile node
• ✅ Utilizes an AI language model (OpenAI Chat) to generate specific field values based on user-defined dynamic prompts
• ✅ Updates the corresponding Airtable record with the newly extracted data
• ✅ Supports two update modes — updating only the impacted rows or entire columns when fields are created or updated

By automating these translation steps, Sarah saves hours weekly, eliminates human errors, and keeps her Airtable base perfectly up to date with all necessary PDF-extracted info.

3. Prerequisites ⚙️

• n8n account with workflow publishing capability
• Airtable account with access to your relevant Base and an API personal access token for authentication 🔑
• OpenAI account with API key for access to AI models 🔐
• Ability to upload PDFs attached to records in Airtable (the “input field”) 📁

Optionally, you can self-host n8n workflows for greater control. For easy hosting, visit Hostinger guide for n8n self-hosting.

4. Step-by-Step Guide

Step 1: Configure Airtable Webhooks to Detect Changes

Navigate to the Airtable API and create two webhooks for your base using the RecordsChanged Webhook and FieldsChanged Webhook HTTP Request nodes. These webhooks listen for row updates and field additions/updates, respectively.

How to: Open the Set Airtable Vars node and fill in your Base ID, Table ID, and Webhook URL. Then, trigger the webhook creation requests with your Airtable Personal Access Token.

Outcome: Airtable sends events to n8n when rows or fields change, triggering the workflow.

Common mistake: Not setting the correct webhook URL or permissions in Airtable leads to missed triggers.

Step 2: Receive Webhook Trigger in n8n

The Airtable Webhook node accepts the POST event from Airtable. It feeds into the Get Table Schema node that fetches the entire Airtable schema, essential for fetching dynamic prompts configured in field descriptions.

Check: Confirm the webhook is publicly accessible and receives data by inspecting the node execution log after test updates in Airtable.

Common mistake: Forgetting to deploy/publish the workflow so webhook URL remains inactive.

Step 3: Parse Incoming Event Data

Next, the Parse Event code node extracts pertinent details like event type, field IDs, and record IDs from the webhook payload. This separation directs the workflow’s event routing logic.

Code highlight: This JavaScript extracts whether the event is a row update, field creation, or field update, enabling the switch logic downstream.

Step 4: Use Switch Node to Route Event

Based on the event type (row.updated, field.created, or field.updated), the Switch node splits the workflow into two branches:

• Row updated branch: handles minimal updates to only impacted rows
• Field created/updated branch: triggers updates to all rows for the entire column

This design optimizes performance by avoiding redundant updates.

Step 5: Filter Valid Updated Rows With Files

The Filter Valid Rows node ensures only rows where the “File” field contains a valid URL (uploaded PDF) proceed for processing.

Expected: Non-empty URLs lead to further extraction; empty or missing file links are skipped.

Step 6: Iterative Processing Over Rows

Using the SplitInBatches nodes (“Loop Over Items”), the workflow processes one row at a time. This prevents API overload and shows incremental updates in Airtable for better user experience.

Step 7: Download PDFs and Extract Text

The Get File Data HTTP Request node downloads each PDF from its Airtable file URL. Then the Extract From File node extracts readable text from the PDF for AI analysis.

Tip: PDF content extraction quality depends on file format; scanned image PDFs may not yield good results.

Step 8: Dynamic Prompt Construction from Field Descriptions

The Get Prompt Fields code node collects all fields with descriptions, which serve as user-defined dynamic prompts for data extraction instructions. These prompts are crucial inputs for the AI model.

Step 9: Generate Values Using AI Language Model

The workflow uses two instances of OpenAI Chat Model nodes wrapped with related LangChain nodes to:

• Analyze the extracted PDF text
• Apply the dynamic prompt as the data extraction instruction
• Return the specific data point formatted as per field type

Example prompt snippet:

=
{{ $json.text }}


Data to extract: {{ $('Event Ref').first().json.field.description }}
output format is: {{ $('Event Ref').first().json.field.type }}

Step 10: Update Airtable Records with Extracted Data

The Set nodes compile the AI-generated field values and pass them to the Update Row and Update Record Airtable nodes to apply updates. The process repeats for each batch of rows.

5. Customizations ✏️

• Change input field: In the Set Airtable Vars node, update the inputField value (“File”) to match your PDF attachment field in Airtable.
• Adjust batch size: Modify the SplitInBatches node options to process more rows simultaneously for faster updates or fewer for reduced load.
• Prompt tuning: Refine the dynamic prompt text in the Generate Field Value nodes for more accurate and context-aware extraction tailored to your documents.
• Switch logic expansion: Add more cases in the Switch node to handle additional Airtable webhook event types if needed.

6. Troubleshooting 🔧

• Problem: Webhook not triggering

  Cause: Incorrect webhook URL or missing Airtable permissions

  Solution: Verify webhook path in Airtable Webhook node and ensure webhook creation calls succeeded.
• Problem: AI model returns “n/a” or irrelevant data

  Cause: Poor or ambiguous prompt descriptions; low-quality PDF text extraction

  Solution: Improve prompts in field descriptions and test PDF extraction quality separately.
• Problem: Workflow timeout on large Airtable tables

  Cause: Processing too many rows simultaneously

  Solution: Reduce batch size or implement pagination via SplitInBatches nodes.
• Problem: Missing data in updates

  Cause: Incorrect field mapping or update node configuration

  Solution: Double-check Airtable field IDs, mapping modes, and update node inputs.

7. Pre-Production Checklist ✅

• Test Airtable webhook creation calls successfully before running live.
• Verify that PDF files are uploaded correctly in Airtable and accessible to n8n HTTP Request nodes.
• Confirm AI API credentials are valid and have sufficient quota.
• Run test updates on sample records and monitor incremental updates in Airtable.
• Backup Airtable base data prior to workflow deployment for rollback safety.

8. Deployment Guide

Publish the workflow in your n8n editor to activate the webhook endpoint publicly. Ensure all credentials (Airtable, OpenAI) are set up correctly. Monitor the executions tab for errors or performance bottlenecks. Use logs and node execution data to diagnose issues. For large datasets, schedule periodic workflow runs or leverage batch limits.

9. FAQs

• Q: Can I use other AI providers instead of OpenAI?

  A: Yes, n8n supports multiple AI integrations. You may replace or extend the LangChain OpenAI nodes with other AI nodes as needed.
• Q: Does this workflow consume Airtable API credits?

  A: Yes, each webhook event and record update counts towards Airtable API limits. Plan accordingly.
• Q: Is my PDF data secure?

  A: Yes, all data transmitted between Airtable, n8n, and OpenAI is encrypted over HTTPS.
• Q: Can this handle thousands of records?

  A: Yes, but consider batch size and rate limits to avoid throttling.

10. Conclusion

By following this detailed guide, you have built a powerful automation to extract custom data from PDFs and update Airtable efficiently. This saves Sarah—and now you—valuable time weekly, eliminates manual errors, and keeps your records dynamically synced with minimal effort.

Next steps could include adding OCR for scanned PDFs, expanding to other document types, or integrating notification alerts for completed updates. Happy automating!
