Opening Problem Statement
Meet Sarah, a data analyst juggling multiple Airtable bases containing critical project and sales data. Every day, she spends hours navigating tables, running complex queries, and manually aggregating data to answer business questions. This tedious process not only wastes Sarah’s valuable time but also invites errors and inconsistencies that impact decision-making. Imagine Sarah trying to quickly find top-selling products with specific filters or calculate averages across datasets without wasting hours on manual calculations and formula building.
This is a real problem that many Airtable users face—querying and analyzing data quickly and accurately without deep technical know-how. That’s where this unique n8n workflow, integrating AI chat capabilities with Airtable, steps in to transform how Sarah interacts with her data.

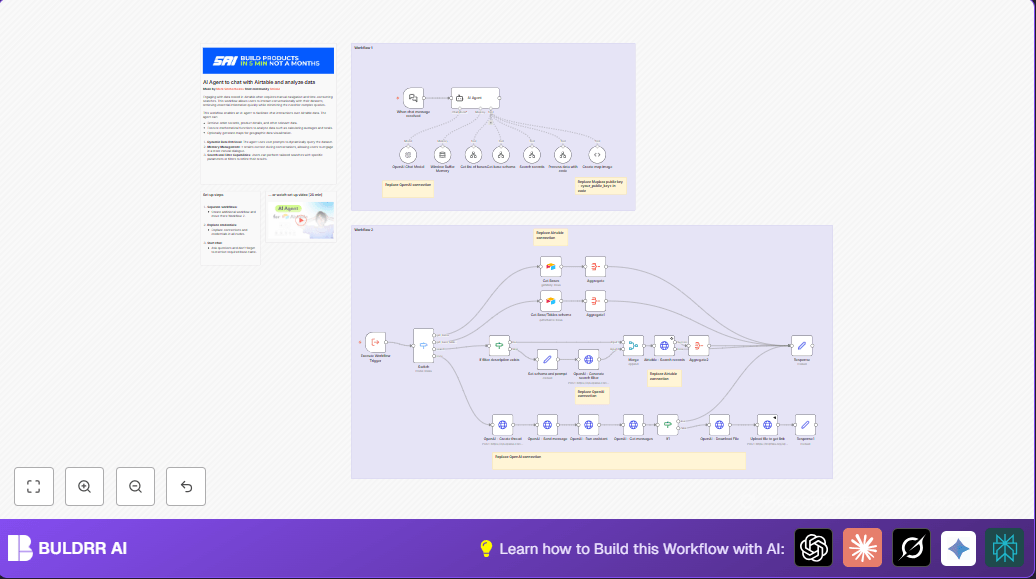

What This Automation Does
This n8n workflow empowers users like Sarah to chat naturally with Airtable data using an AI agent powered by OpenAI and LangChain. Here’s what happens when it runs:
- Natural Language Querying: Users send a chat message describing their data needs, such as “Show me all orders above $500 from last quarter”.
- Dynamic Data Retrieval: The AI agent processes the query, selects the appropriate Airtable base and table, and executes tailored search filters.
- Smart Data Aggregation and Analysis: For requests involving calculations like sum, count, or averages, the workflow uses specialized code nodes to process and summarize data accurately.
- Memory Contextualization: A window buffer memory retains previous interaction context, enabling multi-turn conversations with relevant follow-ups.
- Map Visualization: When geographic data is involved, the workflow generates map images using Mapbox integration for quick visual insights.
- File and Message Handling: The workflow handles complex responses and can manage file downloads and uploads dynamically to provide comprehensive answers.
Overall, this automation cuts down hours spent manually querying Airtable and reduces human error by letting an AI agent handle the complexity.
Prerequisites ⚙️
- n8n Account: Access to an n8n automation platform.
- OpenAI API Key 🔐: Required for the AI chat model and conversation logic.
- Airtable Account 📊: With API access and relevant bases containing your datasets.
- Mapbox Access Key (Optional) ✏️: For generating map images if geographic visualization is needed.
Step-by-Step Guide
Step 1: Set Up the Chat Trigger Node
In n8n, start by adding the @n8n/n8n-nodes-langchain.chatTrigger node. This listens for incoming chat messages from users. Navigate to: Add Node → Langchain → Chat Trigger. Configure the webhook to receive chat input and session IDs. This acts as the interaction entry point, capturing user queries like “Find sales from Europe”.
Outcome: Your workflow is ready to accept conversational input.
Common Mistake: Not properly setting the webhook ID or session key format can cause issues recognizing chat messages.
Step 2: Configure the Window Buffer Memory Node
Add the @n8n/n8n-nodes-langchain.memoryBufferWindow node next. This stores conversation context keyed by session ID: Window Buffer Memory → Set Session Key = sessionId from Chat Trigger. It enables the AI agent to maintain context over multiple messages, supporting natural conversation flow without losing previous data references.
Outcome: The AI agent remembers earlier user inputs during the session.
Common Mistake: Using inconsistent or missing session keys will break the conversation thread.
Step 3: Set Up the OpenAI Chat Model Node
Add @n8n/n8n-nodes-langchain.lmChatOpenAi, connecting your OpenAI API credentials. This node handles the language model processing to understand and respond to chat inputs dynamically.
Outcome: OpenAI processes user queries with intelligent NLP capabilities.
Common Mistake: Forgetting to update the OpenAI credentials or using expired keys results in API errors.
Step 4: Integrate the AI Agent Node
Add the @n8n/n8n-nodes-langchain.agent node, linking outputs from the chat input and window memory nodes. Configure the agent text as {{ $('When chat message received').item.json.chatInput }}. This node orchestrates interactions, determining when to query Airtable, when to run code for aggregations, or generate maps.
The system message instructs the AI to act as an Airtable assistant, use code for math, validate data accuracy, and confirm actions before responding.
Outcome: Your AI assistant intelligently processes user requests with multi-tool capabilities.
Common Mistake: Improper prompt or agent configuration leads to irrelevant or inaccurate responses.
Step 5: Configure Workflow Triggers and Switch Node
Add a Execute Workflow Trigger node to handle custom commands within the AI agent flow. Use a Switch node to route commands like “get_bases”, “get_base_tables_schema”, “search”, and “code” to corresponding Airtable or code processing nodes.
Outcome: Dynamic routing of commands depending on user intent ensures precise data handling.
Common Mistake: Failing to correctly map commands in the switch rules causes workflow misrouting.
Step 6: Connect Airtable Nodes for Data Operations
Use n8n-nodes-base.airtable nodes to fetch base information and table schemas. Additionally, configure HTTP Request nodes to perform tailored Airtable searches with filters derived from AI-generated OpenAI prompts.
Specifically, the workflow includes nodes for:
- Getting Base and Table schemas
- Performing record searches with filter formulas dynamically generated by AI
- Aggregating multiple response lists
Outcome: This setup delivers granular, filtered data from Airtable based on conversational context.
Common Mistake: Not updating Airtable API credentials or base IDs leads to failed requests.
Step 7: Implement the OpenAI HTTP Request Nodes
Include HTTP Request nodes configured for calls to OpenAI endpoints, such as chat completions for generating filter formulas from user requests, message threads management, and assistant execution.
For example, the OpenAI – Generate search filter node makes a POST call with the model “gpt-4o-mini” and processes schema-defined JSON responses for filters.
Outcome: Dynamic AI-generated Airtable formulas create powerful, user-friendly filtering without manual coding.
Common Mistake: Misconfiguring schema or prompt parameters prevent accurate formula generation.
Step 8: Use Code for Data Processing and Map Creation
The workflow integrates ToolWorkflow and ToolCode LangChain nodes to process mathematical aggregations (e.g., counts, averages) and generate map image URLs using Mapbox’s static map API.
The Create map image node uses JavaScript to format markers and generate a valid Mapbox URL with coordinates provided.
Outcome: Users get additional contextual insights through processed numbers and graphical maps.
Common Mistake: Forgetting to replace the Mapbox public key placeholder results in broken image links.
Step 9: Response Handling and File Upload
Output nodes such as Set prepare the final response to send back to the user, packaging data, and links neatly.
In cases where files are involved, the workflow downloads OpenAI files and uploads them to a temporary storage service via HTTP POST, returning accessible URLs.
Outcome: Rich and user-friendly responses including files and images facilitate better interaction.
Common Mistake: Not setting proper API keys for temporary file upload services blocks file delivery.
Customizations ✏️
1. Add Support for New Airtable Bases
In the Get Bases Airtable node, add additional base tokens or expand the API scope to cover more datasets. This lets the AI agent access a wider range of information.
2. Customize AI Prompts for Domain-Specific Language
Modify the system message in the AI Agent node to include custom instructions or terminology relevant to your business. This improves response relevance and user understanding.
3. Enhance Memory Duration
Adjust the session key expiration or memory buffer window size in the Window Buffer Memory node to maintain longer context in conversations.
4. Integrate Additional Visualization Tools
Extend the Create map image node logic or add new LangChain code nodes for charts or other image types to better represent data visually.
5. Add More Advanced Aggregation Functions
Expand the Process data with code workflow to support additional mathematical operations or generate more complex image summaries.
Troubleshooting 🔧
Problem: “API key invalid” or authentication failures when querying Airtable or OpenAI.
Cause: Incorrect or expired API keys.
Solution: Go to the credentials section in n8n, update your Airtable and OpenAI API keys, and retest the workflow.
Problem: Memory context not preserved across messages.
Cause: Session keys are not properly set or not consistent.
Solution: Ensure the sessionKey in the Window Buffer Memory node matches the session ID from the chat trigger node exactly.
Problem: Filters generated by the AI do not match Airtable syntaxes leading to failed searches.
Cause: Incorrect formulas or prompt configurations.
Solution: Review and adjust the OpenAI prompt in the Set schema and prompt node to produce accurate Airtable formulas, and test with sample queries.
Pre-Production Checklist ✅
- Verify that OpenAI and Airtable credentials are correct and have appropriate permissions.
- Test chat input through the webhook to confirm messages are received.
- Simulate queries covering all commands: get_bases, get_base_tables_schema, search, code.
- Ensure map generation works by providing geographic data points.
- Backup all workflow and credential configurations before deployment.
Deployment Guide
Activate the workflow in n8n after replacing all placeholder API keys and webhook URLs. Enable the webhook trigger node to listen for chat messages live. Monitor usage logs from OpenAI and Airtable nodes to ensure smooth operation and troubleshoot any API or network errors promptly.
FAQs
Q: Can I use a different AI provider than OpenAI?
A: This workflow is specifically optimized for OpenAI models integrated via LangChain, but it could be adapted with some development effort to other providers.
Q: Does this consume a lot of API credits?
A: Usage depends on the frequency and complexity of queries. Be mindful of OpenAI’s pricing and Airtable API rate limits.
Q: Is my Airtable data secure?
A: Yes, all API calls use secure tokens, and data is processed within your controlled environment.
Q: Can this handle large datasets?
A: The workflow uses pagination and limits, but very large datasets might require segmenting queries for performance.
Conclusion
By implementing this cutting-edge n8n workflow, you’ve enabled conversational AI interaction with your Airtable data. This saves countless hours spent on manual queries, enhances data accuracy, and provides powerful insights via smart aggregation and visualization. Next steps could involve adding voice input, integrating other databases, or expanding the agent’s capabilities to perform actions directly in Airtable.
Unlock the full potential of your Airtable data with AI-powered chat—making data interaction natural, fast, and intelligent.
