Automate Obsidian Notes with n8n, Google Drive & AI

1. The Challenge Olivia Faces with Managing Her Obsidian Vault

Olivia is a knowledge worker who relies heavily on her Obsidian Vault to organize insights from diverse projects and research. Every day, she runs multiple n8n workflows that generate valuable output—data, summaries, notes, and attachments. But manually transferring these results into her Obsidian notes is tedious and error-prone. She wastes hours copying content, converting it into Markdown format, and inserting it into her vault’s folder structure.

This process causes delays in her knowledge capture, risks losing context, and distracts her from core research work. Olivia’s frustration peaks when she realizes that many valuable outputs are left unstructured and unused because the manual effort is overwhelming. What she needs is a system that automatically converts her workflow outputs into neatly formatted Markdown notes inside her Obsidian Vault without extra input.

2. What This Automation Does

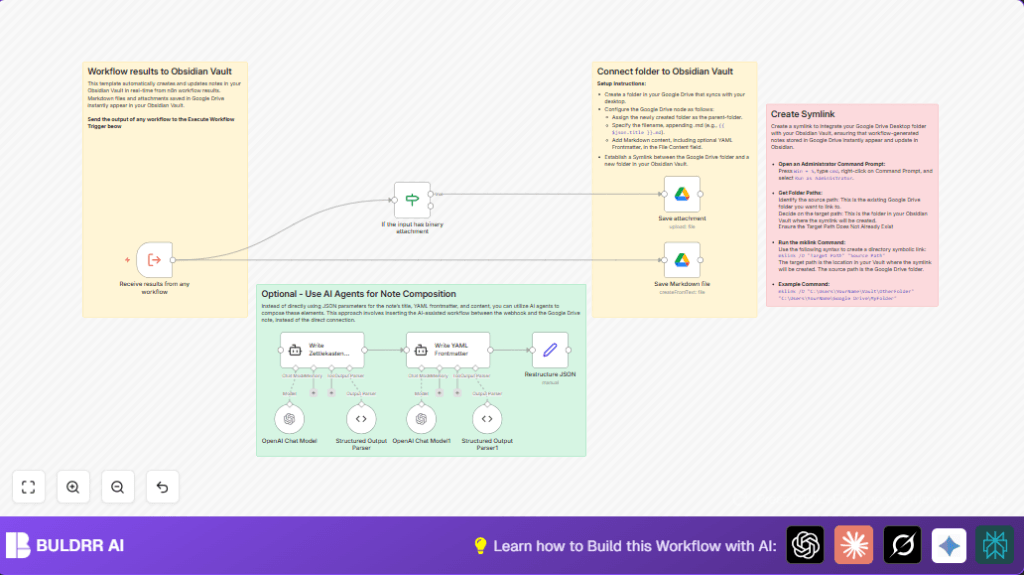

This unique n8n workflow transforms output from any n8n workflow into well-structured Markdown notes saved in Google Drive—immediately accessible in Olivia’s Obsidian Vault via syncing.

• Automatically triggers on receiving results from any other n8n workflow using the Execute Workflow Trigger node.
• Checks if output includes binary attachments (like images or files) and saves them separately to Google Drive folders.
• Uses AI-powered LangChain agents with OpenAI to process raw JSON data and generate a Zettelkasten-style note — a concise, atomic insight with a unique ID, title, content, tags, and references.
• Employs a second AI agent to generate YAML frontmatter metadata for the note, optimizing Obsidian’s knowledge discovery features.
• Creates the final Markdown file with frontmatter and content, then saves it in a Google Drive folder configured to sync with the user’s Obsidian Vault folder.
• Utilizes symlinks (symbolic links) on the desktop to map the Google Drive folder into the Obsidian Vault seamlessly, reflecting updates instantly.

This automation reduces manual note-taking time from hours to seconds and ensures organizational consistency with AI-enhanced structuring.

3. Prerequisites ⚙️

• n8n account — to build and trigger workflows.
• Google Drive account with OAuth credentials — for saving Markdown notes and attachments.
• OpenAI account with API access — to power AI agents for note composition and metadata generation.
• Obsidian app installed on your desktop — to access the vault folder that will sync with Google Drive.
• Google Drive desktop sync client installed — to create an always-updated folder working as a bridge.
• Administrator access on your desktop — for creating symbolic links between Google Drive and Obsidian folders.

4. Step-by-Step Guide to Automate Notes from Workflow Results

Step 1: Set up the Google Drive Folder for your Markdown notes

1. Open your Google Drive web interface and create a dedicated folder, e.g., clippings-attachments.
2. Make sure your Google Drive desktop client is syncing this folder to your local machine.
3. In n8n, drag the Google Drive node (Save Markdown File) into your workflow.
4. Configure it with your Google Drive OAuth credentials.
5. Set the Operation to createFromText.
6. Choose the folder you created in the Folder ID field.
7. For the file name, use {{ $json.title }}.md to dynamically name each Markdown note.
8. In the Content field, add the following template:

=---
{{ $json.frontmatter }}
---
{{ $json.content }}

This YAML frontmatter and markdown content format ensures full Obsidian compatibility.

Tip: Double-check the Folder ID points correctly to your Google Drive folder.

Step 2: Configure the Execute Workflow Trigger node to start the automation

1. Add the Execute Workflow Trigger node from the n8n node list.
2. This node will act as an input endpoint to receive output from any other workflow.
3. Name it Receive results from any workflow.
4. Nothing else to configure here, it triggers automatically on workflow execution.

Common mistake: Forgetting to connect the trigger output properly in downstream nodes.

Step 3: Add the If node to check for binary attachments

1. Insert the If node after the trigger.
2. Set the condition to check if current data has a binary property that exists.
3. Connect the true output to a Google Drive node (Save attachment) configured to save binary data.
4. Connect the false output to the Write Zettelkasten note from input1 node.

Why? This allows the workflow to separately handle file attachments and textual note content.

Step 4: Use the LangChain Agent node to generate a Zettelkasten note

1. Add the Write Zettelkasten note from input1 node (LangChain Agent) to receive JSON input.
2. Paste the exact prompt from this workflow JSON:

"You are an expert knowledge management assistant creating a Zettelkasten note from raw input data... (full prompt as in the workflow)

3. This node calls OpenAI’s language model to compose a structured JSON note including id, title, content, tags, and references.
4. Connect the output to the Write YAML Frontmatter LangChain agent node next.

Step 5: Generate YAML frontmatter metadata

1. The Write YAML Frontmatter node receives the note content.
2. It generates a YAML block with title, date, tags, aliases, status, and source elements.
3. This is critical for Obsidian’s enhanced note organization.
4. Connect its output to the Restructure JSON node.

Step 6: Restructure JSON for Google Drive storage

1. Use the Set node Restructure JSON to map AI outputs to appropriate fields:

• title: from AI note title.
• content: AI note content.
• frontmatter: YAML frontmatter text.
• references: linking original sources.

2. This reformats the note into a schema ready for Markdown saving.
3. Feed this directly into the Save Markdown file node.

Step 7: Handle attachments with Google Drive

1. If the data had binary content, the Save attachment node saves it to the same Google Drive folder.
2. This keeps notes and related files together and synced to Obsidian.

Step 8: Create Symlink from Google Drive Folder to Obsidian Vault on your Desktop

1. Open an Admin Command Prompt:
Press Win + S, type cmd, right-click and run as Administrator.
2. Identify your Google Drive synced folder path.
3. Identify the folder path inside your Obsidian Vault.
4. Run the command:

mklink /D "C:UsersYourNameVaultNotesFolder" "C:UsersYourNameGoogle Driveclippings-attachments"

5. This creates a symbolic link making your Google Drive folder contents instantly appear in Obsidian.
6. Remember: the target path (vault subfolder) must not exist already.
7. Updates in Drive immediately reflect inside Obsidian. No manual copying required.

5. Customizations You Can Make ✏️

• Adjust folder destinations: Change the Folder ID in both Google Drive nodes to target different folders for notes and attachments.
• Modify AI prompt: Tweak the LangChain Agent prompts in Write Zettelkasten note from input1 to refine note style or focus areas (e.g., add more tags or deeper summaries).
• Add a suffix or prefix to filenames: In the Save Markdown file Google Drive node, alter the filename expression to add date/time stamps or workflow identifiers.
• Customize YAML frontmatter: Modify Write YAML Frontmatter prompt to include more metadata fields like authorship or priority status.
• Expand attachment handling: Add nodes to convert images or other files into thumbnails or previews before saving.

6. Troubleshooting 🔧

Problem: “Google Drive upload fails with permission error.”
Cause: OAuth credentials expired or insufficient Drive folder permissions.
Solution:

• Reauthorize Google Drive node by refreshing OAuth credentials in n8n Credentials settings.
• Ensure the Drive folder is shared properly and your account has write access.

Problem: “AI agent returns invalid JSON or empty output.”
Cause: Prompt syntax or rate limit issues with OpenAI.
Solution:

• Inspect the LangChain Agent’s prompt format for errors.
• Check your OpenAI API usage limits and upgrade plan if necessary.

Problem: “Notes don’t sync to Obsidian after update.”
Cause: Symlink not set up correctly or wrong folder path.
Solution:

• Verify symlink paths exactly match the Google Drive and Obsidian folder locations.
• Make sure Obsidian’s vault sync settings do not exclude the target folder.

7. Pre-Production Checklist ✅

• Confirm Google Drive OAuth credentials work and folder IDs are correct.
• Test Execute Workflow Trigger node by sending sample JSON outputs.
• Validate AI agent outputs produce well-formatted note JSON and YAML frontmatter.
• Ensure symlink creation on desktop is successful with no errors and latest files appear in Obsidian.
• Backup existing vault data before first run to avoid overwriting critical files.

8. Deployment Guide

Once the workflow is fully tested, activate it in your n8n instance. Use the Execute Workflow Trigger node to chain other workflows’ outputs directly here, creating an automated pipeline from data generation to note saving.

Keep an eye on execution logs in n8n for errors or rate limit warnings. Consider enabling webhook triggers if you wish to invoke this note creation externally.

9. FAQs

Q: Can I use Dropbox instead of Google Drive?
A: This workflow is tailored to Google Drive due to native n8n integration and easy desktop sync for Obsidian, though you may adapt it using Dropbox nodes with research.

Q: Does AI note creation consume a lot of API credits?
A: Each note creation involves OpenAI calls; optimize prompts and batch process outputs to save credits.

Q: Is my workflow data secure?
A: Data is processed via your n8n instance and Google Drive OAuth-secured APIs. Keep credentials private and use HTTPS connections.

10. Conclusion

You’ve now built an elegant, automated system that translates any n8n workflow result into polished Markdown notes directly inside your Obsidian Vault. By marrying AI-powered content creation, Google Drive’s syncing, and symbolic linking, you free yourself from tedious manual note-taking. This not only saves you hours weekly but also boosts your knowledge management quality and speed.

Next steps could include expanding this setup to support more complex workflows with richer metadata, integrating with other note-taking systems, or adding notification layers to alert you of new notes. Enjoy your smarter Obsidian Vault!
