Automate Google Sheets to HTML with n8n Webhook

1. Opening Problem Statement

Meet Tom, a marketing analyst who regularly compiles campaign data in Google Sheets for his team. Every week, Tom spends excessive time exporting this spreadsheet data into HTML documents to embed in emails and reports. This manual process wastes hours and is error-prone, causing delays in sharing updated campaign results. Tom needs an automated way to convert Google Sheets data into HTML format instantly and reliably without repetitive clicks.

For Tom, the challenge is real: manually exporting the sheet to HTML takes about 30 minutes weekly. Multiply that by weeks in a year, and that’s nearly 26 hours lost and the risk of missing the latest data updates during busy periods. His team depends on timely, accurate data presentations — a delay impacts decision-making.

2. What This Automation Does

This n8n workflow solves Tom’s problem by connecting a webhook trigger, a Google Sheets node, and a spreadsheet file node to automate HTML conversion. Here’s what happens when this automation runs:

• Instant Trigger: When someone invokes the webhook URL, the workflow starts automatically.
• Fetch Latest Sheet Data: Reads the specified Google Sheets data using Tom’s connected Google account.
• HTML Conversion: Converts the retrieved sheet data into a clean, shareable HTML file format.
• Response Delivery: Returns the HTML file content or stores it for further use (such as emailing or posting).

This automation replaces manual export tasks, saving Tom up to 30 minutes each week and reducing human errors. It ensures the team always has immediate access to the latest campaign data in HTML format without extra steps.

3. Prerequisites ⚙️

• n8n account with workflow editor access.
• Google Sheets account with the target spreadsheet (Tom’s campaign data spreadsheet).
• Configured Google Sheets OAuth2 credentials in n8n (Tom’s Google Sheets account).
• Knowledge of the Google Sheets sheetId to be used for data reading.

4. Step-by-Step Guide

Step 1: Set Up the Webhook Trigger

Navigate to your n8n editor and add a new node:

• Click + Add Node.
• Select the Webhook node from the “Core Nodes” list.
• Set Path: Use a unique identifier like 08569699-fea2-4856-80aa-fe878ab9dd4f (or generate your own).
• Response Mode: Set to lastNode to return data from the final node in the workflow.

Visual Check: You should see a confirmation that the webhook is ready with the URL to be tested.

Expected Outcome: Webhook listens for incoming HTTP requests to trigger the workflow.

Common Mistake: Forgetting to set a unique and reachable webhook path or triggering without activating the workflow.

Step 2: Add and Configure the Google Sheets Node

Click + Add Node and choose Google Sheets:

• Set Operation to Read (default behavior in this workflow).
• Enter the sheetId of Tom’s campaign spreadsheet: 1uFISwZJ1rzkOnOSNocX-_n-ASSAznWGdpcPK3_KCvVo.
• Connect Google Sheets OAuth2 credentials linked to Tom’s Google account.
• Options: Leave blank unless specific ranges or filters needed.

Visual Check: After execution, you should see rows pulled from the spreadsheet in the node’s output panel.

Common Mistake: Using incorrect sheetId or missing authentication setup.

Step 3: Add Spreadsheet File Node to Convert Data to HTML

Add a Spreadsheet File node:

• Set Operation to toFile.
• Choose the fileFormat as html.
• Connect this node after the Google Sheets node so it receives data as input.

Visual Check: After running the workflow, the output of this node includes a binary HTML file.

Common Mistake: Forgetting to properly connect nodes in sequence or not selecting the HTML format.

Step 4: Connect Nodes

Ensure the connection flows from the Webhook node to the Google Sheets node, then to the Spreadsheet File node. Your workflow should look like this:

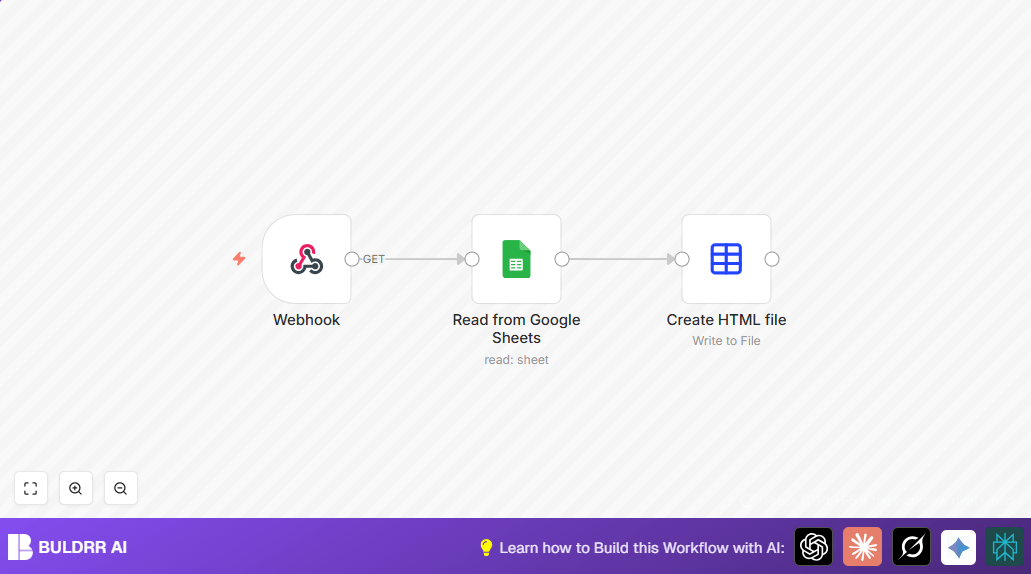

Webhook → Google Sheets → Spreadsheet File

Step 5: Activate the Workflow and Test

Save your workflow and activate it. Trigger the webhook by pasting the webhook URL in a browser or using a tool like Postman. You should receive the HTML file content as a response.

Common Mistake: Not activating the workflow before testing the webhook.

5. Customizations ✏️

Change Google Sheets Source

In the Google Sheets node, replace the sheetId with another sheet’s ID to convert different data to HTML.

Adjust Export Format

Open the Spreadsheet File node and switch the fileFormat to xlsx or csv if you want other file types instead of HTML.

Append Additional Processing

Add nodes after the HTML conversion to email the file or upload it to storage services like AWS S3 or Google Drive.

Secure the Webhook

Use n8n’s built-in authentication options on the webhook node to restrict access and avoid unauthorized triggers.

6. Troubleshooting 🔧

Problem: “Error authenticating with Google Sheets API”

Cause: OAuth2 credentials missing or expired.

Solution: Reauthorize credentials in n8n by going to Credentials → Google Sheets OAuth2 → Reauthenticate.

Problem: “No data returned from Google Sheets”

Cause: Incorrect sheetId or sheet permissions.

Solution: Confirm sheet is shared with the Google account connected and sheetId is correct.

7. Pre-Production Checklist ✅

• Verify the Google Sheets sheetId is correct and accessible.
• Test the webhook URL with sample requests before going live.
• Check the output of each node during manual workflow execution.
• Ensure OAuth2 credentials are valid and not expired.

8. Deployment Guide

After final testing, activate the workflow. Monitor recent executions periodically in n8n to review logs and confirm the HTML outputs are correct. You can integrate this workflow with other tools to automate sending reports or publishing HTML files.

9. FAQs

Can I use a different spreadsheet program instead of Google Sheets?

This workflow specifically uses Google Sheets because of the OAuth2 integration. For other spreadsheet services, alternative nodes or APIs would be needed.

Does this workflow consume Google Sheets API quotas?

Yes, each read action counts towards your Google API limits. Monitor your usage in the Google Cloud Console.

Is my data secure when using the webhook?

The webhook can be secured with n8n node authentication and HTTPS. Ensure your n8n instance is properly secured.

10. Conclusion

By following this guide, you have automated the tedious task of converting Google Sheets data into an HTML file using n8n’s webhook trigger. What used to take Tom 30 minutes weekly now completes instantly, saving time and reducing errors. You’ve gained a reliable, repeatable process to share up-to-date data effortlessly.

Next steps could include emailing the HTML file automatically, triggering this workflow on a schedule, or integrating with web publishing platforms for seamless data updates. Keep exploring n8n’s possibilities to automate more of your reporting tasks!
