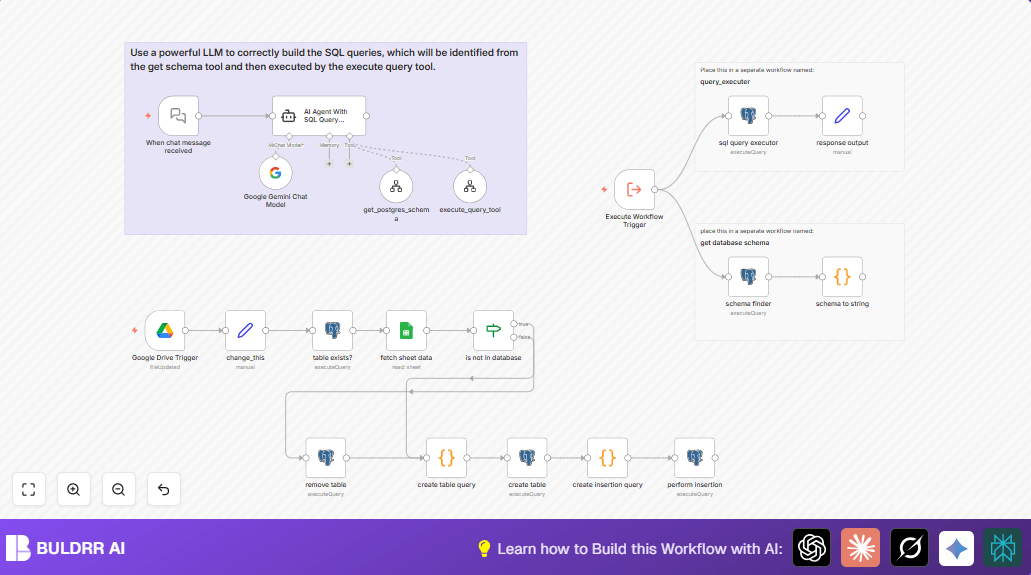

Automate Google Sheets to PostgreSQL with AI-driven SQL in n8n

1. Opening Problem Statement

Meet Sarah, a data analyst responsible for managing her company’s product inventory data stored in Google Sheets. Every week, she manually exports sheet data, cleanses it, and updates their PostgreSQL database. The process is tedious, error-prone, and eats up 3-4 hours weekly. She worries about inconsistent data types, such as dates in varying formats or currencies cluttered with symbols, causing insertion errors and data mismatches. What if Sarah could automate the entire process from sheet trigger to database update, plus query the data conversationally?

2. What This Automation Does

This unique n8n workflow automates Google Sheets data integration into PostgreSQL and supercharges database querying with AI. Specifically, when triggered by a change in a specific Google Sheets file, it:

• Dynamically checks if a PostgreSQL table named after the sheet exists and either creates or recreates it with auto-inferred columns.
• Generates precise SQL to create tables with correct data types, detecting dates and currency columns automatically.
• Fetches fresh data from the sheet, normalizes currencies and percentages, converts date strings to timestamps, and inserts cleaned data into the PostgreSQL table.
• Enables natural language querying of the database using Google Gemini chat AI and Langchain agent, building SQL queries from user questions.
• Provides a real-time conversational interface to retrieve and interpret query results.

Overall, this saves Sarah over 3 hours per week by eliminating manual export, transformation, and insertion steps, while enabling easy data querying without SQL expertise.

3. Prerequisites ⚙️

• n8n account set up (cloud or self-hosted) 🔌
• Google Drive and Google Sheets accounts with OAuth2 credentials 📁📧
• PostgreSQL database accessible with credentials 🔑
• Google PaLM API access for Gemini Chat model usage 💬
• Basic familiarity with n8n to create and manage workflows

4. Step-by-Step Guide

Step 1: Set Google Drive Trigger for Sheet Changes

Navigate to Triggers → Google Drive Trigger, configure the node to monitor a specific spreadsheet file ID (example: 1yGx4ODHYYtPV1WZFAtPcyxGT2brcXM6pl0KJhIM1f_c). This node listens for any updates or new changes to the spreadsheet.

Expected: Workflow fires when sheet data changes. Common mistake: Incorrect file ID or permissions blocking access.

Step 2: Define Sheet Metadata Using Set Node

Click Core Nodes → Set. Assign ‘table_url’ to the sheet’s URL and ‘sheet_name’ to the specific tab name inside the Google Sheets (example: product_list) exactly as in your spreadsheet.

Outcome: Simplifies referencing sheets further down.

Step 3: Check if PostgreSQL Table Exists

Add a Postgres → Postgres node with this query:

SELECT EXISTS (
  SELECT 1
  FROM information_schema.tables
  WHERE table_name = 'ai_table_{{ $json.sheet_name }}'
);

This skips redundant table recreation if the table exists. Mistake to avoid: typo in table naming or no connection established to the DB.

Step 4: Fetch Sheet Data with Google Sheets Node

Use Google Sheets → Google Sheets node configured to pull all data from the sheet_name and table_url.

Verify: You see the expected rows from your sheet in the node’s preview.

Step 5: Conditional Logic for Table Creation

Use an If node to branch depending on if the table exists (table exists?). If false, proceed to remove and recreate the table; else, just insert data.

This ensures your PostgreSQL schema accurately reflects sheet changes.

Step 6 & 7: Create Table Query and Table Schema Dynamically

Add a Code → Code node to generate a CREATE TABLE query. It scans sheet columns, detects date columns (format MM/DD/YYYY), and currency columns (like $, ₹), mapping these columns to appropriate SQL types such as TIMESTAMP or DECIMAL(15,2). It dynamically constructs a SQL DDL statement, ensuring the primary key column ai_table_identifier is added.

Then use a Postgres → Postgres node to execute that CREATE TABLE command.

Common error: Incomplete currency detection or invalid SQL syntax from dynamic column names.

Step 8: Create Insertion Query with Data Normalization

Another Code → Code node dynamically builds an INSERT INTO query with all rows. This node:

• Normalizes currency strings (removes symbols, casts to numbers)
• Converts date strings into ISO timestamp compatible with PostgreSQL
• Handles percentages and empty/null values gracefully

Outputs a parametrized SQL insertion statement alongside parameter values.

Step 9: Perform Data Insertion into PostgreSQL

Add a Postgres → Postgres node to perform the INSERT query with parameters. Once done, your table should be fully populated with clean, correctly typed data.

Step 10: Natural Language Querying Setup

For querying, use Manual Chat Trigger (LangChain) node to receive user questions. Then an AI Agent with SQL Query Prompt node (LangChain Agent node) analyzes questions, fetches schema (via get_postgres_schema tool workflow node), generates SQL, and sends it to the execute_query_tool for execution.

This setup enables conversational querying without manual SQL writing.

Step 11: Use Google Gemini Chat Model for AI Processing

The Google Gemini Chat Model node integrates Google PaLM API for state-of-the-art language model processing, improving understanding of user questions and generating more accurate SQL queries.

Step 12: Output Query Results

After executing the SQL query, response data is set in a Set node and sent back through the chat interface for user reading.

5. Customizations ✏️

• Change sheet or table naming: In the change_this Set node, modify sheet_name or table_url to point to a different spreadsheet or tab.
• Adapt currency symbols: Edit the detectCurrency and currency helpers in create table query and create insertion query code nodes to support other currency formats.
• Allow incremental updates: Extend the workflow with a comparison node to insert only new or changed rows instead of full table refresh.
• Extend AI response styling: Customize the AI Agent With SQL Query Prompt system message to tailor query explanations and interaction style.
• Adjust timestamp parsing formats: Modify the date regex in both code nodes if your sheets use different date formats.

6. Troubleshooting 🔧

Problem: “SQL syntax error near dynamic column names”
Cause: Unexpected characters or spaces in sheet column headers.
Solution: Sanitize column names in the create table query Code node, replacing spaces or special chars with underscores.

Problem: “Postgres connection refused or authentication failed”
Cause: Incorrect or expired credentials.
Solution: Verify credentials in n8n under credentials manager, test connection before workflow run.

Problem: “Date values not converting correctly”
Cause: Sheet dates not matching MM/DD/YYYY format.
Solution: Adjust regex and parsing code to match actual formats or convert dates inside Sheets.

7. Pre-Production Checklist ✅

• Confirm Google Drive Trigger firing on the correct spreadsheet.
• Validate PostgreSQL credentials and permissions.
• Test sheet data fetch and preview row structure.
• Simulate full table drop and recreate cycle to check DDL generation.
• Test insertions with sample data including currency and date values.
• Verify AI chat prompt produces valid SQL queries and executes them successfully.
• Create workflow backups before activating live runs.

8. Deployment Guide

Activate the workflow by toggling the enable switch in n8n. Ensure all credentials are correctly connected.
For production, schedule regular runs or rely on the Google Drive Trigger for real-time updates.
Monitor execution logs on n8n interface to track errors or workflow status.
Consider self-hosting n8n for enhanced control over data flow and API limits — Hostinger supports this approach.

9. FAQs

• Q: Can I use a different database like MySQL?
  A: This workflow’s SQL generation and queries are tailored to PostgreSQL syntax. You’d need to adjust queries and node types for MySQL.
• Q: Does this consume many API credits from Google PaLM?
  A: The number of calls depends on query frequency and complexity, but caching and efficient prompts can minimize usage.
• Q: Is the data safe during transfer?
  A: OAuth2 credentials and encrypted connections ensure secure data transmission between Google Sheets, n8n, and PostgreSQL.
• Q: Can this handle large sheets?
  A: It’s designed for moderate data sizes. For very large sheets, consider batch processing or pagination.

10. Conclusion

By following this tutorial, you have built an n8n workflow that seamlessly syncs Google Sheets data into a PostgreSQL database with dynamic schema detection and robust data normalization. You also enabled natural language querying powered by Google Gemini and LangChain, eliminating tedious manual data handling and SQL writing.

Sarah’s time savings of 3-4 hours weekly can now be invested in crucial analysis work rather than repetitive admin. Next, consider automating alerts on specific data changes, integrating dashboards, or extending support to multi-sheet synchronization.

Embrace this automation to boost your data management efficiency with n8n and AI-driven SQL assistance!
