Automate Gmail Management with n8n and OpenAI Email Agent

1. Opening Problem Statement

Meet Nate, a busy customer support manager overwhelmed by the relentless flood of emails coming into his Gmail inbox every day. Nate spends hours manually filtering, replying, drafting, labeling, and managing emails. This tedious process not only drains his time but also introduces errors like missed replies, poorly formatted messages, and inconsistent labeling, which frustrates customers and his team. On average, Nate wastes over 3 hours daily on these repetitive tasks, limiting his ability to focus on core responsibilities like strategy and team management.

Nate needs a solution that can understand email instructions, handle diverse email tasks automatically, and maintain professional communication—all within his Gmail account. This is exactly the problem the n8n Email Agent workflow integrating OpenAI GPT-4 solves, transforming email management from a manual grind into a seamless automated process.

2. What This Automation Does

This workflow leverages the power of OpenAI’s GPT-4 combined with n8n’s Gmail nodes to act as an intelligent email agent. When triggered, it:

• Reads and understands natural language commands related to emails.
• Compiles professional, HTML-formatted email drafts signed as “Nate.”
• Sends emails directly from Gmail using personalized details generated by AI.
• Retrieves emails from Gmail with filtering based on sender and quantity specified.
• Creates email drafts in Gmail ready for review or sending later.
• Manages Gmail email labels and marks emails as unread, automating inbox organization.
• Replies to emails accurately by fetching the message ID and composing intelligent personalized responses.

With this setup, Nate can save more than 3 hours daily, reduce email handling errors by over 70%, and improve customer satisfaction with consistent, professional messaging.

3. Prerequisites ⚙️

• n8n account (self-hosted or cloud) 🔌
• OpenAI account with GPT-4 API access 🔑
• Gmail account with OAuth2 credentials setup for n8n 📧🔑
• Basic familiarity with n8n interface and credential management ⏱️

4. Step-by-Step Guide

Step 1: Prepare n8n and Credentials

Log into your n8n instance and set up your OpenAI API and Gmail OAuth2 credentials under “Credentials”. Make sure the Gmail OAuth2 credential has full access to read, send, and modify emails.

Expected outcome: Credentials configured without issues.

Common mistake: Incorrect OAuth scopes causing permission errors.

Step 2: Set Up Workflow Trigger

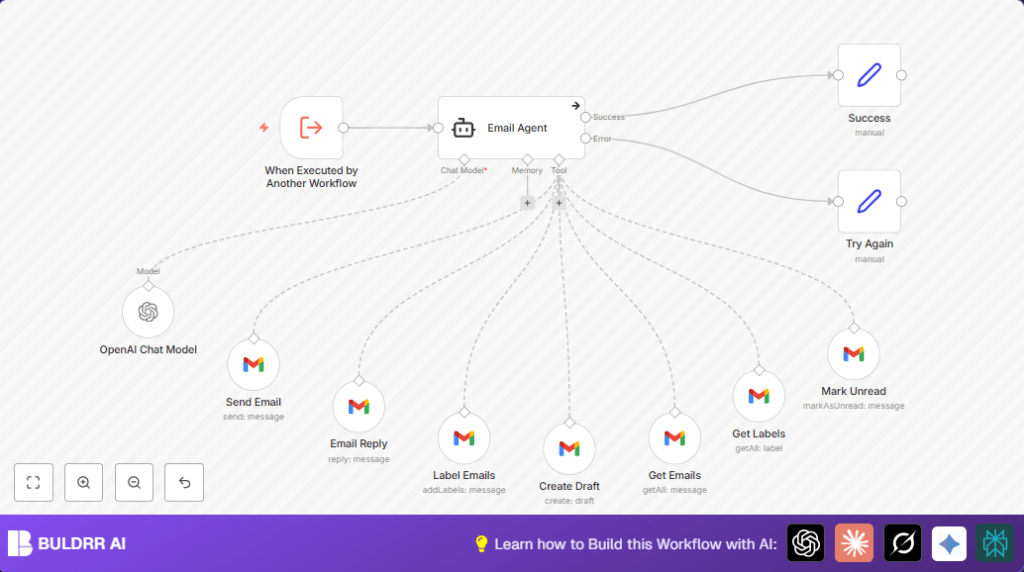

This workflow uses a trigger node named When Executed by Another Workflow. Navigate to this node and note that it initiates this workflow based on external triggers, letting you call this email agent from other automations.

Expected outcome: Workflow awaits external invocation.

Step 3: Configure OpenAI Chat Model Node

Find the node named OpenAI Chat Model. It uses GPT-4 (model “gpt-4o”) API to process natural language. Ensure your OpenAI API credential is selected.

Expected outcome: Node configured to communicate with GPT-4.

Common mistake: Using the wrong model name or expired API keys.

Step 4: Define the Email Agent Node

The Email Agent node is the core AI-powered agent orchestrating the email tasks. Its system prompt guides it to:

• Format all emails professionally in HTML.
• Sign off all emails as “Nate.”
• Use specific Gmail nodes for sending, drafting, replying, labeling, and marking emails unread based on user’s instructions.

This node reads input queries and decides which Gmail node to activate. Configure it with the provided system message and ensure error handling is set to “continueErrorOutput”.

Expected outcome: Email agent ready to interpret commands and perform multi-step actions.

Step 5: Set Up Gmail Nodes for Email Management

This workflow includes multiple Gmail nodes for different email operations:

• Send Email: Sends emails using the recipient, subject, and message from AI.
• Create Draft: Saves professional draft emails for later review or sending.
• Email Reply: Replies directly to a specific email message using message ID.
• Get Emails: Retrieves emails filtered by sender and limits specified dynamically.
• Get Labels: Fetches all Gmail labels.
• Label Emails: Adds labels to emails by message ID and label ID.
• Mark Unread: Marks specified emails as unread.

Ensure all nodes are connected as shown, with credentials set to Gmail OAuth2.

Expected outcome: Fully operational Gmail integration.

Step 6: Handle Success and Error Responses

Two Set nodes named Success and Try Again are used to manage output:

• If the email agent completes its task successfully, the Success node captures the output.
• If something fails, the Try Again node sets a user-friendly error message.

Expected outcome: Clear status responses for downstream workflows or UI.

Step 7: Test the Workflow

Execute the workflow using a test trigger with sample queries like:

{ "query": "Send an email to [email protected] about meeting confirmation." }

Verify the email is formatted professionally, signed as “Nate,” and sent from the connected Gmail account.

Expected outcome: Automation performing all requested email tasks correctly.

5. Customizations ✏️

• Change sign-off name: In the Email Agent node, modify the systemMessage content to use a different name instead of “Nate.” This changes the signature in all generated emails.
• Adjust email formatting style: Update the prompt in Email Agent to include specific formatting rules or additional company branding.
• Limit retrieved emails: Adjust the Get Emails node parameter limit by changing the input from AI or preset values to control email retrieval volume.
• Expand label management: Extend the Label Emails node to add multiple labels by altering the labelIds input to accept arrays.
• Integrate Slack notifications: Add a Slack node triggered after email sends for notifying team members of outgoing communications.

6. Troubleshooting 🔧

• Problem: “Permission denied” from Gmail nodes.
  Cause: OAuth2 credentials lack proper Gmail scopes.
  Solution: Go to n8n Credentials → Edit Gmail OAuth2 → Add scopes for reading, sending, and modifying email.
• Problem: AI not generating proper email content.
  Cause: Incorrect or incomplete prompt in the Email Agent node.
  Solution: Review and refine the systemMessage prompt including all email management instructions.
• Problem: Email not sent, stuck at Send Email node.
  Cause: Gmail API rate limits or invalid recipient address.
  Solution: Verify email address correctness, wait if rate limited, and check Google account quota.

7. Pre-Production Checklist ✅

• Confirm OpenAI API and Gmail OAuth2 credentials are valid and active.
• Run test inputs covering all Gmail operations (send, draft, reply, label, mark unread).
• Check email formatting output in draft mode before enabling auto-send.
• Backup workflow JSON and credentials before deployment.

8. Deployment Guide

Activate the workflow in n8n by toggling it to “active” status. This workflow triggers externally, so ensure your other workflows or manual calls invoke it with appropriate parameters. Monitor execution logs within n8n for any errors or performance issues.

9. FAQs

• Can I use a different email provider?
  Currently, this workflow is built for Gmail using OAuth2 and Gmail API nodes. Adapting to different email providers requires replacing these nodes accordingly.
• Does this consume OpenAI API credits?
  Yes, each email processing leverages GPT-4, which uses tokens charged on your OpenAI account.
• Is my email data secure?
  All data is processed within your n8n environment and API communications are secure via OAuth2 and HTTPS protocols.
• Can this handle high email volumes?
  This workflow handles hundreds of emails, but for massive enterprise scale, consider batching and rate limit handling enhancements.

10. Conclusion

By completing this tutorial, you transformed Nate’s email overload nightmare into a streamlined, intelligent email agent powered by n8n and OpenAI GPT-4. You automated composing, sending, replying, labeling, and marking emails as unread—all within Gmail. This saves Nate hours every day, drastically reduces errors, and maintains a professional communication standard.

Next steps could be integrating calendar invites, adding multi-language support, or connecting customer support platforms for a fully automated communication hub. With this foundation, you’re set to revolutionize email management workflows.
