Automate GitHub Event Handling with n8n and TravisCI

1. Opening Problem Statement

Meet Sarah, a software developer juggling multiple GitHub repositories and frequent code updates. Every time a push or a pull request occurs, she needs to manually trigger CI builds in TravisCI to test the changes. This manual step eats up precious time and occasionally leads to missed builds or delayed testing, increasing the chance of bugs slipping through. Sarah loses hours every week on these repetitive tasks, frustrating not just her but the whole team who depend on quick feedback.

2. What This Automation Does

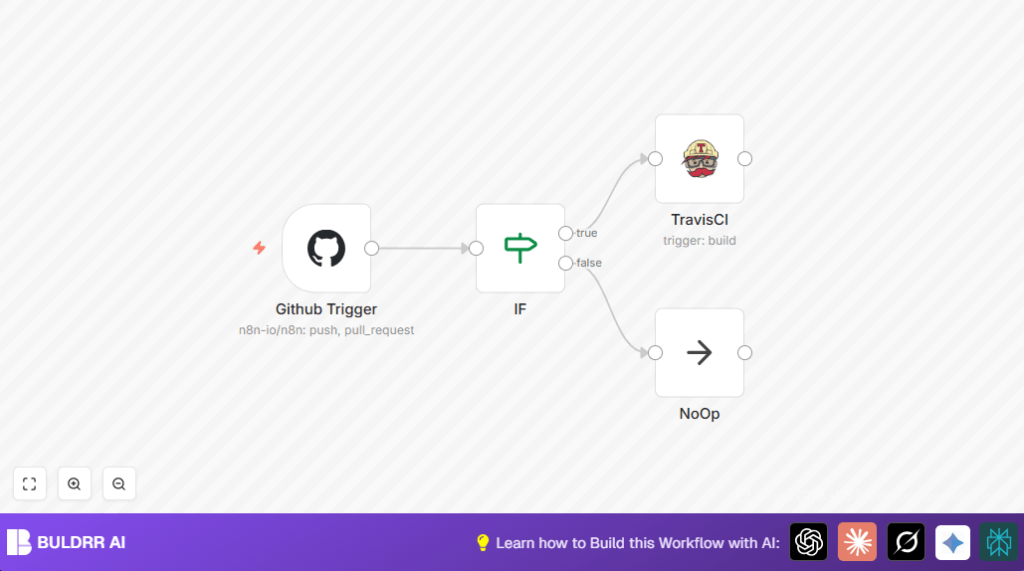

This specific n8n workflow automates the integration between GitHub events and TravisCI builds. When a push or a pull request is opened in a GitHub repository, this workflow takes action automatically. Here’s what happens:

• Listens for GitHub push events and pull request opened events using the GitHub Trigger node.
• Evaluates the event type with the IF node to distinguish between push and pull request.
• Triggers a TravisCI build on the corresponding repository branch when the condition matches.
• Skips action when event types don’t match push or pull request opened.
• Saves Sarah and her team several hours per week by removing manual build triggering.
• Enhances overall code quality by ensuring every push or pull request automatically kicks off CI builds.

3. Prerequisites ⚙️

• n8n account or self-hosted instance (optional self-hosting with Hostinger at buldrr.com/hostinger)
• GitHub account with a repository to monitor 📁
• GitHub OAuth2 API credentials setup in n8n 🔑
• TravisCI account with API credentials configured 🔑

4. Step-by-Step Guide

Step 1: Add and Configure the GitHub Trigger Node

Go to Nodes panel, click Add Node, search for GitHub Trigger, and select it.
Set the owner to your GitHub organization or username (e.g., n8n-io), and repository to watch (e.g., n8n repository).
Under Events, select push and pull_request to listen for both types of events.
Choose the oAuth2 authentication option and select your configured GitHub OAuth2 credentials.
You should see the node ready to capture webhooks from these GitHub events once the workflow is active.
Common mistake: Forgetting to set OAuth2 credentials or incorrect owner/repository names will result in no event triggers.

Step 2: Add and Configure the IF Node to Filter Events

Add an IF node right after the GitHub Trigger node.
Set two conditions using the string operator:
– Compare {{$json["headers"]["x-github-event"]}} equals push
– Compare {{$json["body"]["action"]}} equals opened
Configure the combine operation to any so the branch is true if either condition matches.
This node filters the webhook data to only allow through push events or pull requests that have just been opened.
Common mistake: Mixing the two conditions with “all” instead of “any” will block all events.

Step 3: Configure the TravisCI Node to Trigger Builds

Add the TravisCI node and connect it to the ‘true’ output of the IF node.
Set the slug to {{$json["body"]["repository"]["full_name"]}} which dynamically sets the repository name.
Leave the branch blank to target the default branch, or customize if needed.
Choose ‘trigger’ as the operation to start a build.
Select your Travis API credentials set in n8n.
Once activated, this node triggers a TravisCI build for every qualifying GitHub event.
Common mistake: Incorrect API credentials or malformed slug will prevent builds from triggering.

Step 4: Add a NoOp Node for the False Branch

Add the NoOp node to the ‘false’ output of the IF node.
This node does nothing—it acts as a placeholder when events don’t match the criteria.
This avoids workflow breaks or errors when unsupported GitHub events come in.
You should see this node executing silently during non-trigger events.
Common mistake: Omitting this node can cause workflow errors for unexpected events.

5. Customizations ✏️

• Trigger builds only on specific branches: In the TravisCI node, set the branch field to a specific branch name like main or develop to restrict builds.
• Extend event coverage: Modify the IF node conditions to include other GitHub events like closed pull requests or tags.
• Add Slack notification: Insert a Slack node after the TravisCI node to notify your team when builds start or fail. Use the trigger event payload for message content.
• Log events to Google Sheets: Add a Google Sheets node to store event data for audit purposes.

6. Troubleshooting 🔧

Problem: “No builds triggered despite push events”

Cause: Incorrect OAuth2 credentials or webhook not properly set up in GitHub.
Solution: Verify GitHub OAuth2 credentials, check the repository in the trigger node matches exactly the webhook source, and test GitHub webhook delivery in repository settings.

Problem: “TravisCI trigger API returns errors”

Cause: Improper API credentials or incorrect repo slug.
Solution: Re-enter Travis API credentials in n8n credentials manager and confirm the full repository name slug (e.g. owner/repo) matches exactly to TravisCI format.

7. Pre-Production Checklist ✅

• Confirm GitHub OAuth2 credentials are active and have the right scopes (repo permissions).
• Test GitHub webhook by pushing a commit or opening a pull request to verify data arrives in n8n.
• Check that the IF node correctly routes events to TravisCI and NoOp nodes.
• Verify TravisCI API credentials trigger builds successfully via manual tests.
• Backup your workflow before enabling it in production.

8. Deployment Guide

Activate your workflow by toggling the switch in the top right corner of n8n.
Monitor executions via the n8n dashboard to track successful triggers and builds.
For higher reliability, consider deploying n8n on a dedicated server or cloud provider with proper uptime guarantees.
Use n8n logging to audit webhook data and triggered jobs for maintenance.

9. FAQs

Q1: Can I use this workflow with GitLab or Bitbucket instead of GitHub?
A1: This workflow uses the GitHub Trigger node specific to GitHub webhooks, so it won’t work with GitLab or Bitbucket out of the box. You’d need to adapt it using respective webhook nodes.

Q2: Does triggering TravisCI consume a lot of API credits?
A2: TravisCI API usage depends on your subscription plan, but basic triggers are generally low-cost. Check TravisCI documentation for rate limits.

Q3: Is my data secure in this workflow?
A3: Yes, OAuth2 credentials ensure secure API access, and no data is stored outside your control in the workflow itself.

10. Conclusion

By setting up this n8n automation, you’ve built a reliable bridge between GitHub repository events and TravisCI build triggers. This automation saves developers like Sarah hours per week by removing manual work, reducing errors, and improving continuous integration feedback loops. Next, explore adding notifications or expanding supported GitHub events to suit your growing development needs. You’ve taken a big step toward smarter, error-free CI/CD pipelines!
