Automate Chat Queries with Pinecone & OpenAI in n8n

Opening Problem Statement

Meet Sarah, a knowledge manager at a fast-growing fintech startup. Sarah regularly deals with large documents like whitepapers and financial reports stored in Google Drive. Every time her team has complex questions about these documents, Sarah spends hours sifting through files manually or copying text across apps to find relevant info. Sometimes crucial insights are missed or answers delayed, impacting business decisions and costing valuable time.

Handling large unstructured text and quickly retrieving context-aware answers becomes impossible without an automated system. Manually searching takes over 3 hours weekly, while inaccuracies have led to misinformed decisions. Sarah needs a streamlined solution that enables instant, precise answers from her data repository—without requiring technical expertise.

What This Automation Does

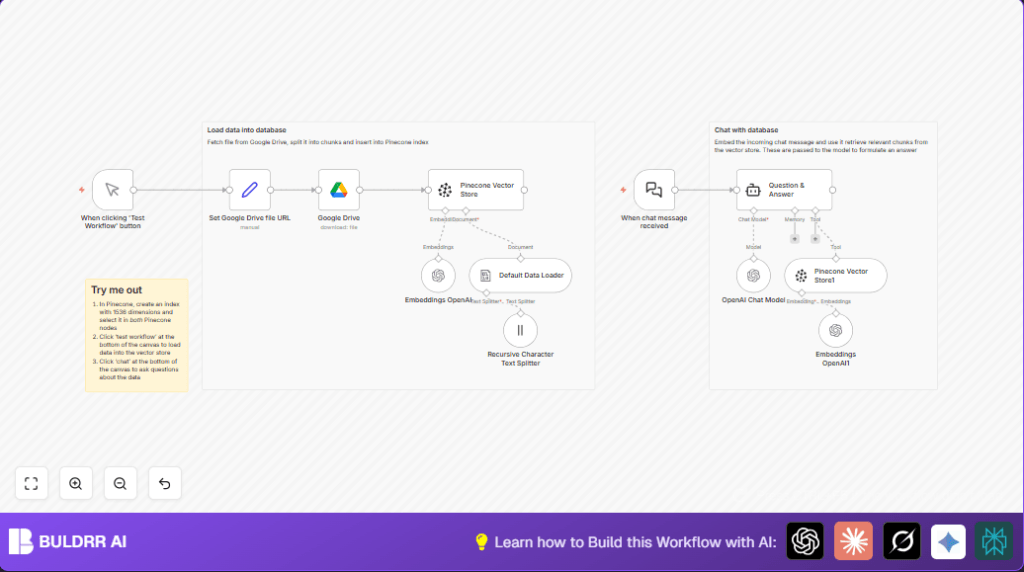

This unique n8n workflow transforms how Sarah and her team interact with large text data. Here’s what happens when this workflow runs:

• Data Loading: It fetches a specified file from Google Drive automatically upon manual trigger.
• Text Processing: The file content is split into smaller chunks optimized for embedding.
• Embedding Creation: Each chunk is converted into vector embeddings using OpenAI models.
• Vector Storage: Embeddings are stored and indexed in a Pinecone vector database with namespace clearing to keep data fresh.
• Chat Query Handling: Incoming chat messages are embedded and used to retrieve relevant chunks from Pinecone to guide AI response generation.
• AI-powered Answers: The OpenAI chat model formulates precise responses based on retrieved context, enabling intelligent Q&A about the documents.

This automation reduces manual search time by hours weekly and enables anyone on the team to get instant, accurate insights from complex documents, making data-driven decisions faster and smarter.

Prerequisites ⚙️

• n8n Account: Required to create and run workflows. Optionally, you can self-host n8n for full control.
• Google Drive Account 📁: To store and access your source documents.
• Pinecone Account 🔑: For vector database indexing and retrieval. Ensure you create an index with 1536 dimensions for this workflow.
• OpenAI Account 🔑: To generate embeddings and power chat responses using GPT-4o-mini or similar models.

Step-by-Step Guide

1. Create Pinecone Index with 1536 Dimensions

Login to your Pinecone console and create an index named test-index with 1536 dimensions. This matches the OpenAI embedding outputs and is key to seamless vector storage.

Expected Outcome: You’ll have an available Pinecone index named test-index ready for data insertion.

Common Mistake: Using incorrect dimensions causes embedding-storage mismatch errors.

2. Set Up n8n Credentials

Go to Settings > API Credentials in n8n and add accounts for Google Drive, Pinecone API, and OpenAI with appropriate permissions.

Expected Outcome: Credentials appear available for use in nodes.

Common Mistake: Missing permission scopes or expired tokens may break node connections.

3. Configure Manual Trigger Node

On the canvas, locate the When clicking ‘Test Workflow’ button manual trigger node.

No special parameters are needed here. This manual trigger initiates data ingestion when clicked.

Expected Outcome: You can start the workflow manually from n8n’s interface.

4. Set Google Drive File URL

Open the Set Google Drive file URL node and enter the Google Drive sharing URL of the file you want to process. For example:

https://drive.google.com/file/d/11Koq9q53nkk0F5Y8eZgaWJUVR03I4-MM/view

Expected Outcome: File URL is stored in a variable for downstream nodes.

5. Download File from Google Drive

The Google Drive node automatically downloads the file using the URL set in the previous step.

Expected Outcome: File content is retrieved as binary data ready for processing.

6. Load Document Content

The Default Data Loader node reads the binary file content into a format suitable for text splitting and embedding.

Expected Outcome: Document content is loaded for text processing.

7. Split Text into Chunks

The Recursive Character Text Splitter node breaks the full text into chunks of 3000 characters with a 200 character overlap to optimize embedding relevance.

Expected Outcome: Text divided into manageable chunks.

8. Create Embeddings with OpenAI

The Embeddings OpenAI node generates numeric vector embeddings for each text chunk using OpenAI’s embedding model.

Expected Outcome: Embeddings ready for insertion into Pinecone.

9. Insert Embeddings into Pinecone Vector Store

The Pinecone Vector Store node inserts the new embeddings with the option to clear the namespace first, ensuring fresh data.

Expected Outcome: Data indexed and searchable in Pinecone.

10. Activate Chat Listener Webhook

The When chat message received node is a webhook waiting for chat input messages in real-time.

Expected Outcome: Webhook URL available; messages trigger further processing.

11. Retrieve Relevant Chunks from Pinecone

Pinecone Vector Store1 node fetches contextual data chunks from the vector database matching the embedding of the incoming chat message.

Expected Outcome: Relevant data chunks are returned to guide AI responses.

12. Formulate Answer using OpenAI Chat Model

The OpenAI Chat Model node uses GPT-4o-mini to generate a chat response based on retrieved chunks.

Expected Outcome: Intelligent, relevant answers crafted for the user query.

13. Combine Answer and Tools

The Question & Answer agent node uses the chat model and the retrieved tool data to generate final answers.

Expected Outcome: A well-formed answer ready to return to the chat.

14. Testing the Workflow

Click the Test Workflow button at the bottom of n8n’s interface to execute the data loading portion and validate correct data entry. Afterwards, use the chat webhook URL to send test questions and see live answers based on your indexed data.

Customizations ✏️

• Change Document Source: In the Set Google Drive file URL node, update the file_url field to point to any other document URL in your Drive.
• Adjust Text Chunking: Modify the Recursive Character Text Splitter node’s chunkSize or chunkOverlap parameters to tune how the text is split for embedding relevance.
• Use Different OpenAI Models: In the OpenAI Chat Model node, switch from gpt-4o-mini to other supported GPT models for varied response style or speed.
• Change Pinecone Index: Update the pineconeIndex parameter in both Pinecone nodes if you want to use a different index or namespace.

Troubleshooting 🔧

Problem: “Invalid Pinecone index dimensions” error when inserting vectors.
Cause: Pinecone index dimensions must match OpenAI embedding dimensions.
Solution: Ensure your Pinecone index is created with 1536 dimensions, matching the OpenAI embeddings used.

Problem: “Google Drive file download fails”.
Cause: Incorrect file URL or expired permissions.
Solution: Verify the Google Drive sharing link and ensure OAuth credentials in n8n have access.

Problem: Chat webhook not triggering responses.
Cause: Incorrect webhook URL usage or missing trigger.
Solution: Use the exact webhook URL from the When chat message received node and test with a valid payload.

Pre-Production Checklist ✅

• Verify Pinecone index exists and has correct dimensions (1536).
• Confirm Google Drive file URL is accurate and accessible.
• Check all credentials in n8n are valid and connected.
• Test manual trigger successfully downloads and indexes data.
• Test chat webhook with sample messages for real-time answers.
• Backup workflow JSON before major edits.

Deployment Guide

Once testing is complete, activate the workflow by enabling it in n8n. Set up monitoring via the n8n execution logs to track any errors or failed webhook calls. Inform your team of the chat webhook URL for query use. Optionally, integrate this URL into chat platforms or web apps for seamless data Q&A interfaces.

FAQs

Q: Can I use a different vector database instead of Pinecone?
A: This workflow is designed specifically with Pinecone’s API nodes. You’d need to modify nodes to support other vector stores.

Q: Does OpenAI embeddings usage consume my API credits?
A: Yes, every embedding request and chat completion uses OpenAI tokens that count toward your quota.

Q: Is my data stored securely?
A: The workflow uses secure OAuth2 credentials for Google Drive and API keys for Pinecone/OpenAI. Ensure your environment is secure and keys kept private.

Q: Can this workflow handle large document volumes?
A: Yes, but large volumes may require adjustments to chunk sizes or processing speed, and you may need upgraded Pinecone or OpenAI plans.

Conclusion

By building this workflow, you’ve automated the laborious process of ingesting large documents from Google Drive into Pinecone for vector search and enabled AI-powered chat queries using OpenAI. Sarah and her team now save hours weekly and access precise answers quickly, empowering smarter and faster business decisions.

Try expanding this automation by adding new document sources, integrating with Slack for chat inputs, or incorporating alert notifications for new indexed data. You’ve taken a big step into the future of knowledge management with n8n!
