Automate Airtable Batch Processing with n8n: Upsert, Insert, Update

Opening Problem Statement

Meet Sarah, a project manager drowning in the daily grind of updating her team’s Airtable base. Every week, she spends hours manually inserting, updating, or merging dozens to hundreds of records. This tedious task is prone to costly errors and inefficiencies. Worse yet, due to Airtable’s API rate limits, her bulk updates often fail or require manual retries—frustrating her and slowing her team’s progress. Sarah needs a reliable, automated solution that handles large batches of Airtable records efficiently, respects Airtable’s API rate limits, and minimizes manual intervention.

What This Automation Does

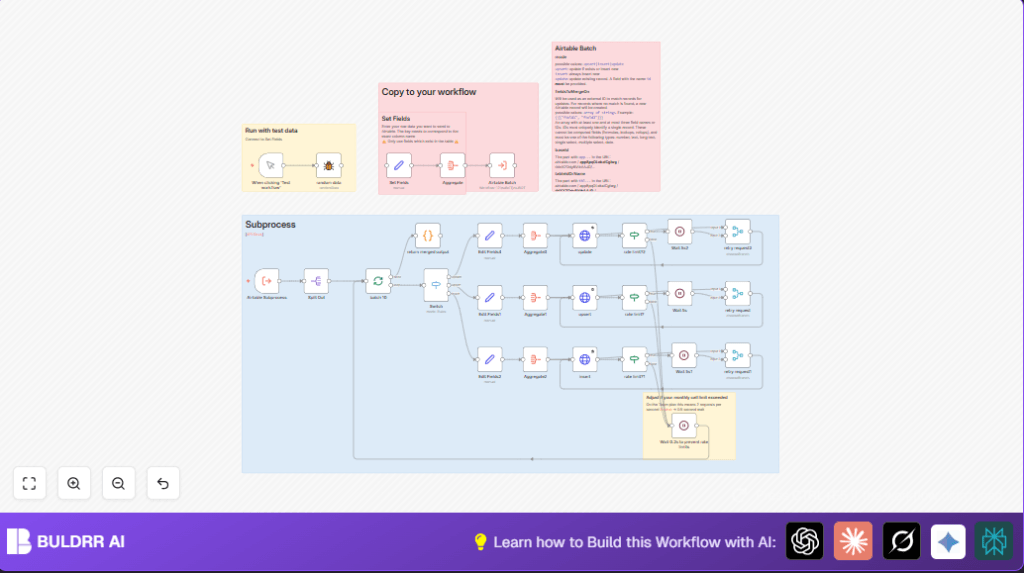

This n8n workflow solves Sarah’s problem by automating batch processing with Airtable’s API. Here’s what happens when this workflow runs:

• Batch Processing: The workflow splits large record arrays into manageable batches of 10 records each, preventing API overload.
• Flexible Operations: It performs upsert (update existing or insert new), insert only, or update only operations based on a dynamic mode, allowing granular control over the data flow.
• Rate Limit Handling: Detects Airtable API rate limiting (HTTP 429 responses) and intelligently waits with retries to avoid request failures.
• Data Aggregation: Collects, merges, and returns detailed responses including created and updated records for tracking and further processing.
• Automated Field Mapping: Dynamically edits and maps fields according to operation mode, ensuring data integrity and matching Airtable’s schema requirements.
• Resilience: Supports retries with exponential wait times for reliability in production environments.

The outcome? Hours saved weekly, error rates drastically reduced, and a smooth, scalable way to maintain Airtable data.

Prerequisites ⚙️

• n8n Account: Access to the n8n automation platform, either cloud-hosted or self-hosted.
• Airtable Account: An Airtable account with API access and a base where you want to batch process records.
• Airtable API Token: An Airtable API key with permissions to read and write to your tables.
• Basic Airtable Knowledge: Familiarity with your base ID, table name/ID, and field names you’ll be updating.

Step-by-Step Guide

Step 1: Setup the Manual Trigger

In n8n, create a Manual Trigger node named When clicking ‘Test workflow’. This triggers the workflow manually for testing and debugging.

You should see a blue button to start the workflow manually during testing.

Common mistake: Forgetting to switch the trigger to manual when testing can cause confusion about workflow execution.

Step 2: Add Example Data (Debug Helper)

Connect the Manual Trigger node to a Debug Helper node named random data to generate placeholder data for testing.

This node generates dummy addresses that simulate real records. It’s useful for initial testing, but replace it with actual data inputs for production.

Step 3: Configure the Subprocess Trigger

Add an Execute Workflow Trigger node called Airtable Subprocess to allow the main workflow to run this subprocess via inputs like base ID, table name, mode, fields to merge on, and records.

This node parses inputs for batch processing and is the core entry-point for subprocess logic.

Step 4: Split Incoming Records

Use a Split Out node to separate the records array field into individual records for batch handling.

This step prepares data for batching and ensures that each batch contains clean record subsets.

Step 5: Batch Processing with Split In Batches

Add a Split In Batches node named batch 10 configured to group records into batches of 10.

This batch size optimally balances Airtable’s API throughput and rate limits. Adjust if your call limits differ.

Step 6: Control Flow with Switch Node

Attach a Switch node that routes requests based on the mode field value. The modes are:

• insert – add new records only
• update – update existing records only
• upsert – update or insert as needed

This allows the same workflow to support different API operations flexibly.

Step 7: Field Preparation with Set Nodes

For each mode, use Set nodes (named Edit Fields1, Edit Fields2, and Edit Fields4) to properly format your record fields according to Airtable’s API expectations:

• Ensure id fields for updates.
• Filter out id when inserting new records.
• Map fields precisely to match column names in Airtable.

Step 8: Aggregate Batched Records

Use Aggregate nodes to collect batched records back into record arrays post-processing for HTTP requests.

Step 9: Make HTTP Requests to Airtable API

For each operation mode, an HTTP Request node is configured to communicate with Airtable’s API:

• insert node uses POST to create new records.
• update and upsert nodes use PATCH for updating or merging.
• All requests use the base ID and table ID/name from subprocess inputs dynamically.
• Authentication is set with a predefined Airtable API key credential.

Example PATCH JSON Body for upsert:

{
  "performUpsert": {
    "fieldsToMergeOn": ["field1", "field2"]
  },
  "records": [{ "id": "recXXXX", "fields": { ... } }, ...]
}

Step 10: Handle Rate Limits Intelligently with If and Wait Nodes

Detect if HTTP status code 429 (Too Many Requests) is returned. If so, the workflow takes these actions:

• Wait 5 seconds and then retry the HTTP request.
• As a fallback, waits 0.2 seconds between batches to prevent hitting the limit.
• Multiple conditional checks with If nodes named rate limit?, rate limit?1, and rate limit?2 handle retries for each HTTP method.

Step 11: Merge and Return Aggregated Output

Use a Code node named return merged output to combine all batch results into a single output object with arrays of created and updated records.

Code snippet:

const output = {
  records: [],
  updatedRecords: [],
  createdRecords: []
};
for (const item of $input.all()) {
  output.records = output.records.concat(item.json.body.records ?? [])
  output.updatedRecords = output.updatedRecords.concat(item.json.body.updatedRecords ?? [])
  output.createdRecords = output.createdRecords.concat(item.json.body.createdRecords ?? [])
}
return output;

Customizations ✏️

• Adjust Batch Size: Change the batch 10 node’s batchSize parameter to match your API call limit or dataset size for optimal performance.
• Change Retry Wait Time: In the Wait 5s, Wait 5s1, and Wait 5s2 nodes, adjust the wait durations if your Airtable plan allows more requests per second.
• Switch Modes Dynamically: Pass a different mode value when calling the Airtable Subprocess node to toggle between insert, update, or upsert without changing code.
• Customize Fields to Merge On: In the upsert HTTP Request node, change the fieldsToMergeOn array values to match your unique record identifier fields in Airtable.
• Use with Different Airtable Bases: Modify the baseId and tableIdOrName inputs dynamically to reuse this subprocess for multiple Airtable bases and tables.

Troubleshooting 🔧

Problem: HTTP 429 Too Many Requests

Cause: Exceeding Airtable’s API rate limit.

Solution: Confirm the workflow’s Wait nodes are correctly linked and triggering after the rate limit? If nodes. Adjust wait times based on Airtable plan limits.

Problem: Records Not Updating or Inserting Correctly

Cause: Incorrect field naming or mismatched ID fields in the record payload.

Solution: Check the Edit Fields nodes for proper mapping. Ensure that for updates, the id field exists and matches Airtable record IDs. For inserts, do not include id in the records.

Problem: Workflow Fails on Large Data

Cause: Lack of batching or exceeding memory limits.

Solution: Verify that the Split In Batches node is properly set to split data into batches of 10 or your preferred size.

Pre-Production Checklist ✅

• Verify Airtable API key and permissions are valid.
• Test with small batches (10 records) using sample data.
• Confirm that baseId and tableIdOrName inputs are correct and accessible.
• Check that mode values (insert, update, upsert) work as expected with test records.
• Simulate API rate limits to observe retry behavior.
• Backup Airtable data before running mass updates.

Deployment Guide

Once tested, activate the workflow. Use the Manual Trigger to start initial tests and switch to event-based triggers for production. Monitor execution logs in n8n to ensure smooth processing. Enable retry counts to handle transient Airtable API failures.

If self-hosting n8n, consider linking to Hostinger via Buldrr for reliable uptime and performance.

FAQs

Can I use this workflow with other API services besides Airtable?

This workflow is specifically tailored for Airtable’s API schema and rate limits, but you can adapt similar logic with modifications for other REST APIs.

Does using this consume Airtable API credits quickly?

It efficiently batches requests to minimize calls, but total consumption depends on your data volume and frequency.

Is my Airtable data secure?

Yes, authentication uses API tokens managed securely within n8n’s credential system. Make sure to keep your API tokens confidential.

Can it handle thousands of records?

Yes, batching and rate limit handling allow scaling up to thousands, but adjust batch sizes and wait nodes accordingly.

Conclusion

With this detailed n8n automation, you just built a robust Airtable batch processing system that can upsert, insert, or update your records efficiently. By automating retries and respecting Airtable’s rate limits, you save hours of manual work, reduce errors, and guarantee data consistency. Next, consider adding event triggers from platforms like Google Sheets or Slack to automate data input streams, or extend this with notifications on update successes or failures.

You’ve unlocked powerful, scalable Airtable automation with n8n — keep experimenting and enhancing your workflows to maximize your team’s productivity.
