1. Opening Problem Statement
Meet Sarah. She runs a busy customer support service that relies on Twilio SMS for real-time communication with her clients. However, Sarah noticed a persistent problem: when customers send multiple quick, partial messages one after another, her AI chatbot replies to each message separately. This causes broken conversations, confusion for clients, and extra workload for Sarah to manually sort out incoherent interactions. She estimates that this inefficiency wastes over an hour every day in customer follow-ups.
This confusion stems from how the AI agent treats each message as a standalone input, responding immediately rather than waiting for the user to finish their thought. What Sarah needs is a way to buffer these rapid message bursts and send a single, thoughtful reply after the user stops sending messages, improving clarity and reducing customer frustration.
2. What This Automation Does

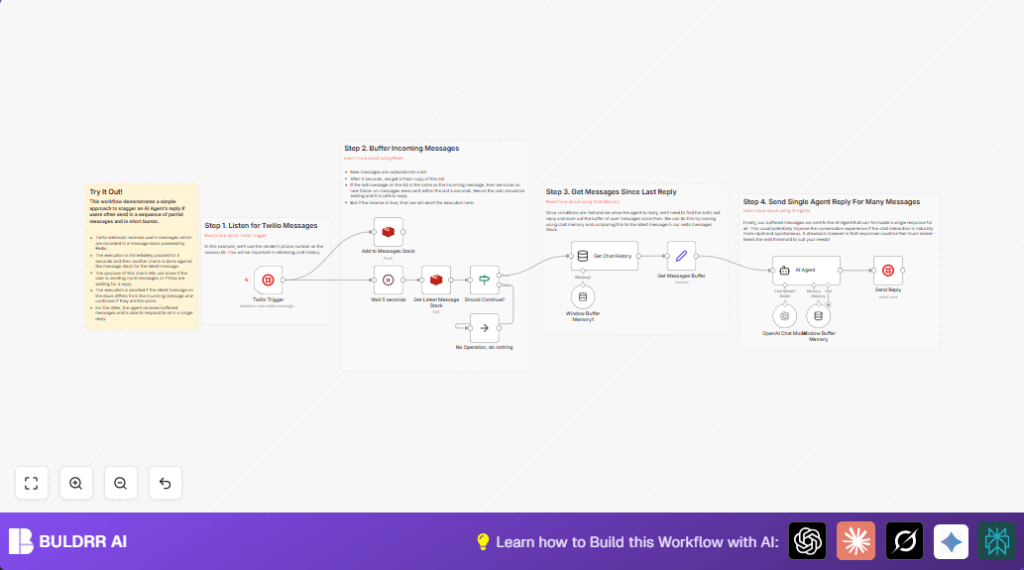

This n8n workflow solves Sarah’s problem by leveraging Twilio, Redis, and AI agents to intelligently manage incoming SMS chat bursts. When you run this workflow, here’s what happens:
- Instant Capture: Incoming messages via Twilio webhook are immediately captured and pushed onto a Redis list keyed by the sender’s phone number.
- Buffer Wait: The workflow pauses for 5 seconds upon receiving a message to detect if the user sends more messages in quick succession.
- Message Stack Check: After waiting, the workflow fetches the latest message stack from Redis to determine if there are new incoming partial messages.
- Conditional Reply: If no new messages have arrived during the wait, the workflow continues; otherwise, it aborts to prevent premature responses.
- Chat Memory Integration: The buffered recent messages since the last AI reply are gathered for context.
- Single AI Response: The buffered messages are sent to an AI agent (OpenAI-powered) for generating a comprehensive single reply to the user.
- Send Reply: The AI’s reply is sent back via Twilio SMS to the user, completing the cycle.
By buffering rapid messages and replying only once when the user pauses, this workflow reduces fragmented AI responses, improves conversation flow, and saves significant time in customer support.
3. Prerequisites ⚙️
- n8n account (Cloud or self-hosted; self-hosted options such as Hostinger recommended for higher privacy)
- Twilio account 📱 with messaging capability and phone number
- Redis account 🔐 or self-hosted Redis server for message stack storage
- OpenAI API credentials 🔑 for AI model calls through n8n’s LangChain nodes
4. Step-by-Step Guide
Step 1: Set up the Twilio Trigger to Listen for Incoming Messages
In the n8n editor, click Add Node → search and select Twilio Trigger. Configure it to listen for com.twilio.messaging.inbound-message.received events. Under credentials, select your Twilio account.
You should see a webhook URL generated—this URL receives SMS messages sent to your Twilio number.
Common Mistake: Not selecting the correct event type will prevent the workflow from triggering on messages.
Step 2: Add Incoming Messages to Redis List
Add a Redis node named “Add to Messages Stack” connected to the Twilio Trigger node. For the operation, choose push and set the list key as chat-buffer:{{ $json.From }}. For the message data to store, enter {{ $json.Body }} to capture the message text.
This stores all messages from each sender in a list for buffering.
Common Mistake: Using a static Redis key rather than dynamic keys per sender loses message separation.
Step 3: Pause Workflow with Wait Node
Insert a Wait node named “Wait 5 seconds” connected after the Redis node. This pauses flow for 5 seconds to allow additional messages to arrive.
Visual Tip: You should see a wait timer confirming the pause is active before proceeding.
Step 4: Fetch Latest Message Stack from Redis
Connect the Wait node to another Redis node labeled “Get Latest Message Stack” with operation get for the key chat-buffer:{{ $json.From }} and key type list. The output property name can be “messages”.
This retrieves the full message list so we can compare the last message with the current incoming text.
Step 5: Check if Reply Should Continue Using an If Node
Drag an If node named “Should Continue?” connected after “Get Latest Message Stack.” Setup the condition to compare the last message in the Redis list with the current incoming message Body. Use the expression {{$('Get Latest Message Stack').item.json.messages.last()}} and compare it with {{$('Twilio Trigger').item.json.Body}} using an equals operator.
If they match, it means the user stopped sending messages; if not, abort the reply.
Common Mistake: Using incorrect expressions in condition fields causes false negatives.
Step 6: Fetch Chat History Since Last AI Reply
From the true condition output, connect to a LangChain Memory Manager node named “Get Chat History” with option “Group Messages” enabled. It loads the previous chat messages for context.
Step 7: Compute Buffered Messages Since Last AI Reply
Connect “Get Chat History” to a Set node called “Get Messages Buffer.” In this node, create a variable “messages” with the expression:
{{
$('Get Latest Message Stack').item.json.messages
.slice(
$('Get Latest Message Stack').item.json.messages.lastIndexOf(
$('Get Chat History').item.json.messages.last().human
|| $('Twilio Trigger').item.json.chatInput
),
$('Get Latest Message Stack').item.json.messages.length
)
.join('n')
}}This expression extracts the new user messages since the last AI reply, joining them into a single string for the AI agent.
Step 8: Send Buffered Messages to AI Agent
Connect the Set node to a LangChain AI Agent node named “AI Agent.” Select the “conversationalAgent” type and map the “messages” variable from the previous node to the agent’s input text.
Step 9: Send AI Reply via Twilio
Finally, connect the AI Agent node’s output to a Twilio node labeled “Send Reply.” Configure it to send a message to sender’s phone (from {{ $('Twilio Trigger').item.json.From }}) and from your Twilio number (from {{ $('Twilio Trigger').item.json.To }}). The message body is set to the AI Agent’s output text.
When triggered, users receive a unified AI-generated reply after pausing their message sequence.
5. Customizations ✏️
- Adjust Wait Time: In the “Wait 5 seconds” node, change the wait duration to shorter or longer (e.g., 3 or 10 seconds) to optimize responsiveness versus buffering.
- Change Redis Key Naming: In both Redis nodes, modify the list key prefix
chat-buffer:to your preferred namespace for better Redis management. - Switch AI Model: In the “OpenAI Chat Model” or “AI Agent” node, update OpenAI settings to use a different model like GPT-4 for enhanced responses.
- Enable Logging: Add a logging node after “Send Reply” to capture sent messages for auditing.
6. Troubleshooting 🔧
Problem: Workflow stops responding after the Wait node.
Cause: Twilio webhook may timeout or Redis connection error.
Solution: Ensure Redis credentials are correct, test connectivity, and increase webhook timeout in n8n settings.
Problem: AI replies immediately to each message instead of buffering.
Cause: If the “Should Continue?” logic fails or Redis keys are mismatched.
Solution: Confirm condition expression is correct and Redis keys are consistent across nodes.
Problem: Messages get mixed up between users.
Cause: Redis list key does not dynamically include sender phone number.
Solution: Use chat-buffer:{{ $json.From }} in Redis nodes to segregate by user.
7. Pre-Production Checklist ✅
- Test Twilio webhook triggers on inbound SMS with your phone.
- Verify Redis list keys populate per user and messages append correctly.
- Confirm Wait node delays execution as expected.
- Check AI Agent receives the buffered message and generates relevant replies.
- Send test replies via Twilio and confirm reception.
- Backup your workflow and credentials before production deployment.
8. Deployment Guide
Activate the workflow in n8n after all testing. Ensure the Twilio webhook URL is live and set in your Twilio phone number messaging settings. Monitor execution logs via n8n’s UI for errors or latency.
Consider using n8n cloud for stable uptime or self-host if you prefer full control and privacy. Use the retry settings if occasional errors occur to enhance reliability.
9. FAQs (Optional)
Q1: Can I replace Redis with a different database?
A1: Redis is ideal here for fast list operations and in-memory speed, but you could use other databases with list support or custom logic in n8n.
Q2: Does this workflow consume many OpenAI API credits?
A2: It depends on message volume. Buffering reduces the number of AI calls by batching messages, saving credits compared to replying individually.
Q3: Is my data secure?
A3: Ensure all credentials are stored securely in n8n, and consider self-hosting for enhanced privacy.
10. Conclusion
By setting up this workflow, you’ve created a smart message buffering system that handles rapid SMS bursts gracefully, sending a single coherent AI-powered reply. This reduces customer confusion, improves chatbot conversation flow, and saves time — potentially hours per week.
Next, you might explore adding sentiment analysis to tailor replies or routing complex queries to human agents only when needed.
Keep experimenting and enhancing your chat automation journey with n8n!
