Automate Restaurant Orders with n8n and OpenAI Chat Model

1. Opening Problem Statement

Meet Sarah, the manager of a busy cafe that often struggles with managing customer orders during peak hours. Every day, Sarah and her staff spend hours manually taking orders from chat messages, deciphering item names, quantities, and table numbers, then typing them into an order system. This process is not only time-consuming but is prone to mistakes, lost details, and delays in order preparation. Sarah realized that inaccurate orders led to frustrated customers, longer wait times, and even loss of revenue during rush hours.

This real-world problem is what our targeted n8n workflow solves by automating the extraction of order details from chat conversations and accurately logging them directly into Google Sheets as order records. By doing this, restaurant staff like Sarah can allocate their time more efficiently, reduce errors, and serve customers faster.

2. What This Automation Does

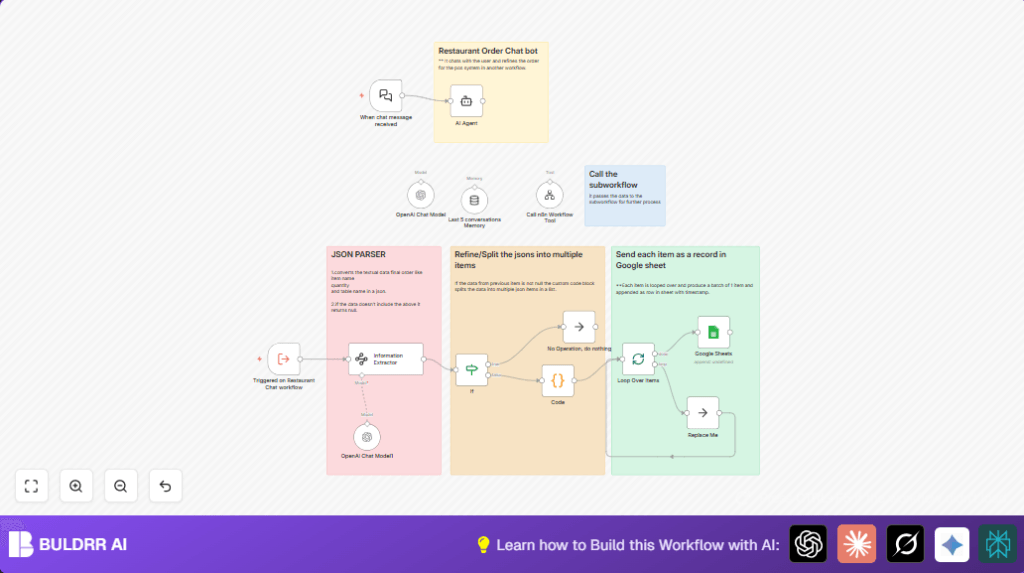

This n8n workflow specifically automates the handling of restaurant orders received via chat messages using OpenAI’s AI models and integrates them seamlessly with Google Sheets. Here’s what it accomplishes when triggered:

• Receives customer chat orders through a LangChain-based chat trigger webhook.
• Uses an AI Agent (OpenAI GPT-4o-mini) to interact with customers — greeting them, collecting order details, verifying item names, quantities, and table numbers, and confirming the final order.
• Extracts structured information (items, quantities, table numbers) from the free-text order messages using an Information Extractor node.
• Refines and splits extracted data into multiple JSON items via a Python Code node for clarity and processing.
• Loops over each order item and appends it as a new row in a Google Sheet with timestamped records, simplifying order tracking.
• Handles incomplete or incorrect information through interactive AI prompts, ensuring orders are corrected and complete before logging.

Overall, this translates to saving hours daily that would otherwise be spent on manual order entry, eliminating human errors, and enhancing operational efficiency for restaurants.

3. Prerequisites ⚙️

• An n8n account — either cloud-hosted or self-hosted (for self-hosting, check options like Hostinger).
• OpenAI account with API access to use GPT-4o-mini model for AI chat and information extraction.
• Google Sheets account with API credentials enabled for appending order data.
• Basic knowledge of Python if you want to customize the Python Code node, though the code is ready to use.
• Familiarity with n8n workflow editor to set up nodes and connections.

4. Step-by-Step Guide

Step 1: Set Up the Chat Trigger Node

Navigate to Trigger → Chat Trigger and set it to public. This node will listen for chat messages from customers placing orders.

Example: The webhook URL generated here will be shared with your chat platform to receive incoming order messages.

Common mistake: Forgetting to set the webhook as public will prevent the node from receiving external chat messages.

Step 2: Configure the AI Agent Node

Drag in the AI Agent node from LangChain nodes. Paste the system message script that defines the conversational workflow, including greeting, order parsing, and error handling. This script instructs the AI on how to interact politely and efficiently with customers.

Ensure you connect it to the Chat Trigger’s output. This node manages dynamic order intake and customer dialogue.

Step 3: Implement Information Extractor Node

Add the Information Extractor node configured to parse the AI Agent’s confirmed order text. Set JSON schema patterns to extract items, quantities, and table number respectively.

Example pattern for quantity: \d+ to capture numeric values.

Step 4: Insert the Python Code Node to Refine Data

This node processes the extracted raw order data, pairing items with quantities and associating table numbers, outputting clean JSON objects for each order line.

Code snippet to use (already provided in the workflow):

input_data = items
extract_data = input_data[0].get('json', {}).get('output', {}).get('parameters', {}).get('extract', [])
order_items = []
table_number = None
items_list = []
quantities = []
for entry in extract_data:
    if entry['name'] == 'table number':
        table_number = entry['pattern']
    elif entry['name'] == 'item':
        items_list.append(entry['pattern'])
    elif entry['name'] == 'quantity':
        quantities.append(int(entry['pattern']))
for i in range(len(items_list)):
    item_data = {
        'item': items_list[i],
        'quantity': quantities[i] if i < len(quantities) else None,
        'table': table_number
    }
    order_items.append(item_data)
output = [{'json': item} for item in order_items]
return output

Explanation: This code extracts arrays of items, quantities, and table numbers then pairs them correctly to produce structured order entries.

Step 5: Use the SplitInBatches Node to Loop Over Orders

Add the SplitInBatches node, connected to the Code node. This loops over each order item individually, facilitating per-item processing.

Step 6: Append Orders to Google Sheets

Configure the Google Sheets node with your spreadsheet ID and sheet name (e.g., "Order log"). Map columns to item name, quantity, table number, and timestamp with the current time.

Once connected, each order item will be appended as a row. Check the sheet to verify incoming orders.

Step 7: Handle Empty or Invalid Orders

Use an If node to check if extraction results are empty. If so, route the workflow to a No Operation node or use the AI Agent to re-prompt for corrections.

Step 8: Test the Complete Workflow

Send sample orders like "1 latte, 2 coffee, table number 5" to your chat trigger webhook URL and observe the entries populate your Google Sheets automatically.

5. Customizations ✏️

• Add Support for More Items: In the Information Extractor node’s JSON schema, add more item patterns (like "pepsi" or "cake") to expand recognized products.
• Change AI Model: Use different OpenAI models by updating the "OpenAI Chat Model" node parameters for cost or performance optimization.
• Customize Confirmation Messages: Edit the AI Agent node system message to tailor order confirmation phrasing and add personalized responses.
• Extend Google Sheet Columns: Add more fields such as "special requests" or "order status" in the Google Sheets node and pass these from the AI Agent or additional nodes.
• Add a Notification Node: Integrate Slack, Email, or SMS nodes after the Google Sheets node to notify staff instantly of new orders.

6. Troubleshooting 🔧

Problem: "Information Extractor returns empty extract array."

Cause: The AI Agent failed to provide structured text matching the extraction schema.

Solution: Ensure the system prompt in the AI Agent is clear about required output formatting. Verify regex patterns in Information Extractor match possible item names and quantities.

Problem: "Google Sheets node appends no rows despite receiving data."

Cause: Incorrect mapping of data fields or invalid document ID.

Solution: Double-check the Google Sheets node configuration for document ID correctness and ensure data fields like item, quantity, and table are correctly mapped.

Problem: "Python Code node throws errors or returns empty output."

Cause: The extracted data structure differs from expected.

Solution: Add a debug node or use n8n’s execution preview to inspect the input JSON to the Code node, then adjust the Python script to match the actual structure.

7. Pre-Production Checklist ✅

• Verify your Google Sheets document permissions allow API appending.
• Test the Chat Trigger webhook publicly to ensure it receives messages.
• Run test chats covering typical orders with and without intentional errors to confirm AI Agent properly handles validation.
• Use the debug mode in n8n to watch each node’s execution output for accurate data flow.
• Create backup copies of your Google Sheet before live deployment.

8. Deployment Guide

Activate the workflow by toggling it "ON" in n8n. Monitor logs via the n8n dashboard for incoming requests and node executions. Set up notifications for error events if desired. Because the workflow relies on third-party APIs (OpenAI, Google Sheets), ensure API keys and quotas remain valid to prevent downtime.

9. FAQs

Can I use GPT-3 models instead of GPT-4o-mini?

Yes, you can switch to GPT-3 based models by changing the model parameter in the OpenAI Chat Model nodes. However, expect differences in accuracy and response styles.

Is my customer data safe?

The workflow processes data securely through APIs with encryption. Always follow best practices for API key management and GDPR compliance.

Can this workflow handle multiple simultaneous orders?

Yes, n8n’s queue and batching capabilities along with the SplitInBatches node handle multiple incoming messages efficiently.

10. Conclusion

By implementing this unique n8n workflow that integrates OpenAI's chat models with structured data extraction and Google Sheets logging, you have fully automated the order-taking process for restaurant chats. Sarah’s cafe can now take orders flawlessly, save multiple hours daily, drastically reduce errors, and enhance customer satisfaction.

Next steps could include integrating payment gateways, adding SMS notifications, or creating more detailed analytics dashboards for orders. This automation transforms customer order management into an effortless, intelligent system.
