1. Opening Problem Statement
Meet Jane, a research analyst who regularly works with bulky PDF reports loaded with images. Each report contains valuable charts, infographics, and diagrams that Jane needs to analyze and document. Manually extracting images from these PDFs and then interpreting them for insights takes Jane several hours per report. On top of that, inconsistent extraction methods often cause missing images or low-quality extracts, and analyzing each image’s content is a tedious, error-prone process. Jane’s workflow is costly in time and prone to inaccuracies, delaying her project deadlines significantly.
This is a real, specific problem many professionals face when handling image-heavy PDFs. Losing precious hours every week, walking through these manual steps, adds up to lost productivity and revenue. Jane desperately needs an automated solution to efficiently extract and analyze every image from her PDF files, ensuring both accuracy and speed.
2. What This Automation Does

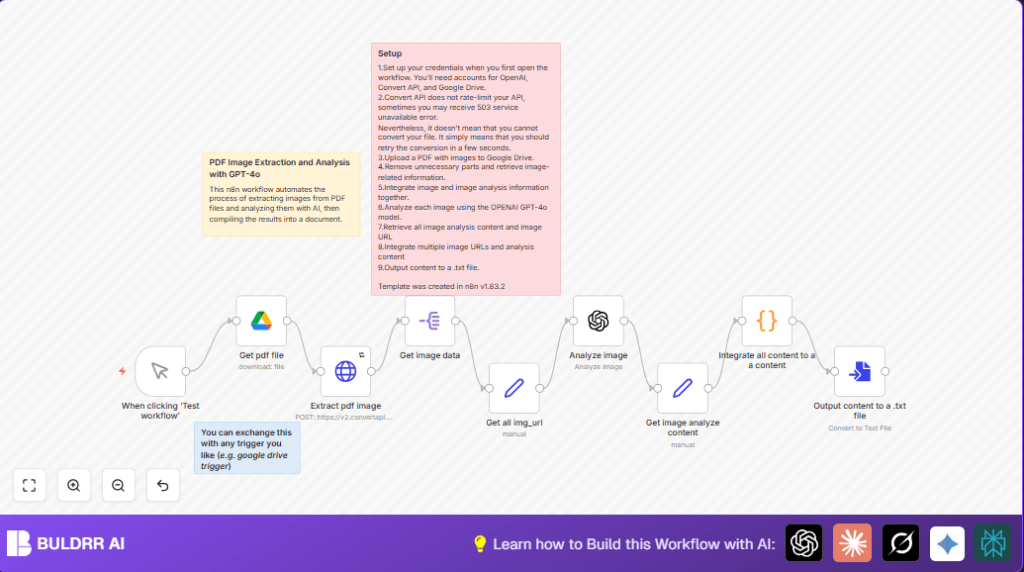

When Jane runs this n8n workflow, here’s what happens step-by-step:
- Download PDF from Google Drive: Accesses the specified PDF stored in Jane’s Google Drive account.
- Extract Images using ConvertAPI: Automatically extracts all images from the PDF file as JPEGs.
- Split Image Data: Separates the extracted images to process them individually.
- Analyze each Image using GPT-4o: Sends each image URL to OpenAI’s GPT-4o model for detailed content analysis.
- Compile Analysis Results: Joins image URLs and their corresponding AI-generated descriptions into a structured content block.
- Output to Text File: Saves the comprehensive image analysis into a downloadable .txt file for documentation or reporting.
This process eliminates hours of manual extraction and subjective interpretation, ensuring Jane receives precise, AI-verified insights on every image promptly. The workflow also handles retrying API calls for robust operation despite occasional network hiccups.
3. Prerequisites ⚙️
- n8n account (Self-hosting option available via platforms like Hostinger https://buldrr.com/hostinger)
- Google Drive account with the PDF file uploaded (🔐 Google Drive node credentials needed)
- ConvertAPI account for PDF image extraction (🔐 HTTP Request node with header authentication)
- OpenAI account configured with GPT-4o model access (🔐 OpenAI node credentials required)
4. Step-by-Step Guide
Step 1: Trigger the Workflow Manually
Navigate to the n8n editor and open this workflow. Click “Execute Workflow” or the Manual Trigger node labeled “When clicking ‘Test workflow’”. This starts the process on demand, but you can replace it later with any trigger (e.g., Google Drive file trigger).
You should see the workflow proceed to download the PDF file automatically.
Common mistake: Forgetting to set the correct PDF file ID in the next node will cause failure to download.
Step 2: Download PDF from Google Drive
Click the “Get pdf file” node. Set the fileId parameter to your PDF’s Google Drive file ID. Here, the sample uses 1WoqaMgaCD-gChGWUqPRJ7-pxbTozEuXN as an example.
Ensure you’ve authorized the Google Drive credentials correctly in n8n.
Successful execution downloads the PDF content as a binary buffer.
Common mistake: Incorrect Google Drive credential setup or file ID typos.
Step 3: Extract Images from the PDF
The “Extract pdf image” HTTP Request node sends your PDF binary to ConvertAPI’s endpoint https://v2.convertapi.com/convert/pdf/to/extract-images via a POST request.
Settings include:
- Method: POST
- Content-Type: multipart/form-data
- Body Parameters: StoreFile=true, ImageOutputFormat=jpg, File=your PDF binary
- Authentication: HTTP Header with your ConvertAPI key
The node is configured with retry on failure set to 5 seconds to combat occasional 503 errors from ConvertAPI.
After execution, expect a multipart response containing all extracted images.
Common mistake: Not configuring authentication headers properly or missing retry settings may cause errors.
Step 4: Split Extracted Image Data for Individual Processing
Open the “Get image data” SplitOut node, which separates the array of images returned from ConvertAPI into individual items for processing each image separately.
After this node runs, each image will be handled one by one downstream.
Common mistake: Using wrong field name to split out errors the process.
Step 5: Prepare Image URLs for Analysis
In the “Get all img_url” Set node, assign the image URL from each split image item (usually found in Url property) to a new field named url.
This standardizes the data format for the next AI analysis step.
Common mistake: Misnaming the field or incorrect JSON path syntax can break the link.
Step 6: Analyze Each Image Using OpenAI GPT-4o
Access the “Analyze image” node (OpenAI node resource set to “image” with operation “analyze”).
It sends each image URL to GPT-4o with the prompt: Please analyze the video in detail and provide a thorough explanation (you can customize this prompt in the node settings).
The node is authenticated with your OpenAI API key and is configured to process images synchronously.
Common mistake: Not using authorized OpenAI credentials or incorrect model ID configuration.
Step 7: Consolidate Image URLs and Analysis Text
The “Get image analyze content” Set node combines each image URL and its GPT-4o generated analysis into a single content string under the property content.
Example result:
https://image_url.jpg
GPT-4o analysis text...
This creates a unified block for each image’s reference and interpretation.
Common mistake: Incorrect reference to prior node JSON data breaks content integration.
Step 8: Merge All Image Analysis into One Text Block
The “Integrate all content to a a content” Code node aggregates all the individual content fields into one long string, joined by line breaks.
Code snippet:
const mergedContent = items.map(item => item.json.content).join('n');
return [
{
json: {
content: mergedContent
}
}
];
This output will be processed by the next node for file conversion.
Common mistake: Modifying the code without preserving the string join logic breaks the final content merge.
Step 9: Output Final Text File
The “Output content to a .txt file” ConvertToFile node takes the merged content string and outputs it as a text file (.txt).
You can download or use this file as a report, archive, or further analysis.
Common mistake: Setting the source property incorrectly causes empty output files.
5. Customizations ✏️
- Switch Trigger Node: Replace the Manual Trigger node with a Google Drive Trigger to automate workflow execution on PDF upload. Navigate to Add Node > Triggers > Google Drive Trigger and configure for new PDF files. This enables fully automated processing without manual starts.
- Change Image Output Format: In the “Extract pdf image” HTTP Request node, alter the
ImageOutputFormatto PNG or GIF if desired to match your preferred image type. - Adjust GPT-4o Prompt: Tailor the AI prompt in “Analyze image” node to specify different analysis styles, like “Summarize technical details” or “Describe visual elements for marketing.” This customizes AI output to business needs.
- Save Output to Cloud Storage: Add a Google Drive or Dropbox node after the text conversion to upload your results automatically for centralized access and sharing.
- Retry Policy Tuning: In the “Extract pdf image” HTTP Request node, modify retry intervals or max retries to optimize handling of API throttling or downtime.
6. Troubleshooting 🔧
- Problem: “503 Service Unavailable from ConvertAPI”
Cause: ConvertAPI occasionally rate-limits or is temporarily unavailable.
Solution: This workflow has retry enabled; simply wait and retry the workflow execution after 5 seconds. If it persists, verify API key validity and ConvertAPI service status. - Problem: “Google Drive download fails due to invalid file ID”
Cause: The file ID entered in “Get pdf file” node is incorrect or the credential lacks permission.
Solution: Double-check the file ID is correct and update your Google Drive OAuth2 credentials under n8n’s credential settings. - Problem: “OpenAI API call error or timeout”
Cause: Wrong API key or exceeded usage limits.
Solution: Check your OpenAI API key validity and model access; consider adjusting workflow usage to stay within limits.
7. Pre-Production Checklist ✅
- Confirm Google Drive file ID is accurate and accessible by your service account.
- Validate OpenAI API key and test a simple request outside the workflow.
- Ensure ConvertAPI credentials are correct and test API endpoints separately.
- Run a test manual trigger and monitor each node execution success.
- Backup your n8n workflows and associated credentials before deploying.
8. Deployment Guide
After thorough testing, activate the workflow by turning it on in n8n.
Optionally, replace the Manual Trigger with an automated event trigger like Google Drive watch to handle new PDF uploads automatically.
Monitor the workflow run logs under n8n’s execution history to troubleshoot and ensure expected runs.
9. FAQs
- Q: Can I use an alternative to ConvertAPI for image extraction?
A: Yes, but you’ll need to adjust the HTTP Request node endpoint and parameters accordingly. - Q: Does this workflow consume OpenAI API credits?
A: Yes, each image analyzed via GPT-4o counts towards your OpenAI usage quota. - Q: Is my PDF data securely handled?
A: Yes, all API interactions use secure authenticated requests and your data stays within your configured accounts.
10. Conclusion
By following this workflow, Jane can now instantly extract every image from her PDFs stored on Google Drive and receive detailed AI-generated analysis without manual effort. This automation saves her hours per document and reduces human error, streamlining her research documentation process.
Next, Jane might explore automating similar AI-powered text summarization of PDF contents or integrating this workflow with email notifications for instant report delivery.
You’re now equipped to build this efficient PDF image extraction and AI analysis system with n8n—enjoy your newfound productivity gain!
